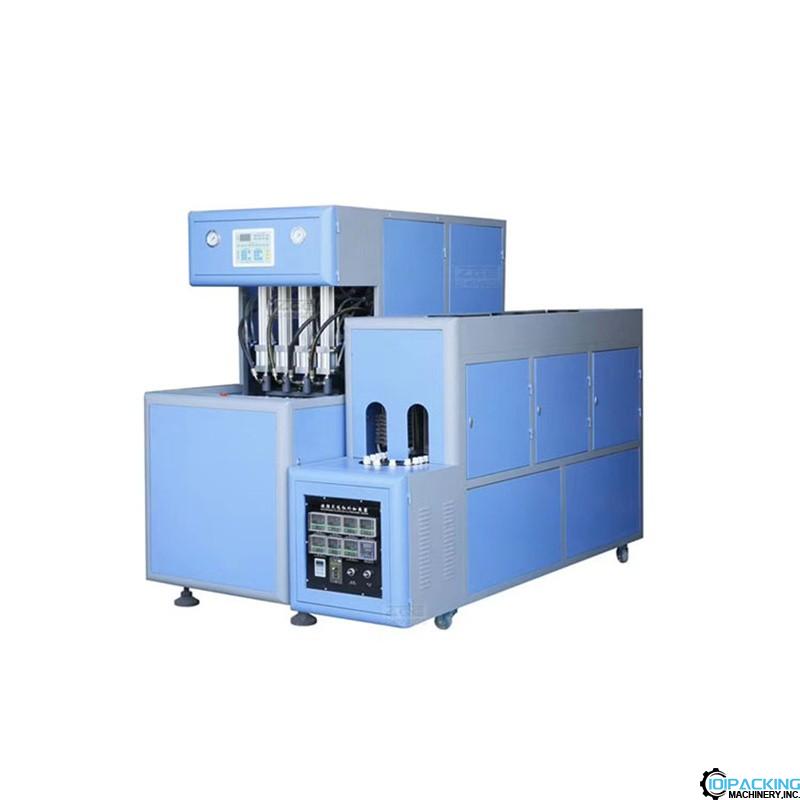

Semi automatic 4 cavity mold PET bottle blowing machine

Model:PK-BM04
Bottle Material:PET/PP
Bottle Volume:0.01-1L
Theoretical Output:1000-1600BPH
Preform Length:15-200mm
Preform Inner Diameter:10-38mm
Max Bottle Diameter:105mm
Max Mould Plate Dimention:L350XW450mm
Max Mould Thickness:170mm
Clamping Force:50KN
Mould Opening Stroke:170mm
Stretching Stroke:360mm
Blower (LxWxH):1500x700x1650mm
Blower Weight:650KG
Blowing Pressure:20-30KG
Acting Pressure:8-10KG
Heater (LxWxH):1800x700x1500mm
Heater Weight:250KG
Rate Capacity:18-25Pcs/Min
Preform Mouth:10-70mm
Power:380V/3Phases/50-60Hz
Motor Power:0.4Kw

Semi automatic 4 cavity mold PET bottle blowing machine

Model:PK-BM04

Bottle Material:PET/PP

Bottle Volume:0.01-1L

Theoretical Output:1000-1600BPH

Preform Length:15-200mm

Preform Inner Diameter:10-38mm

Max Bottle Diameter:105mm

Max Mould Plate Dimention:L350XW450mm

Max Mould Thickness:170mm

Clamping Force:50KN

Mould Opening Stroke:170mm

Stretching Stroke:360mm

Blower (LxWxH):1500x700x1650mm

Blower Weight:650KG

Blowing Pressure:20-30KG

Acting Pressure:8-10KG

Heater (LxWxH):1800x700x1500mm

Heater Weight:250KG

Rate Capacity:18-25Pcs/Min

Preform Mouth:10-70mm

Power:380V/3Phases/50-60Hz

Motor Power:0.4Kw

Semi Automatic 4 Cavity PET Plastic Bottle Stretch Blowing Machine with computer is suitable for producing PET plastic containers and bottles from 0.01-1L. It is widely used to produce the carbonated bottle,mineral water bottle,etc.
