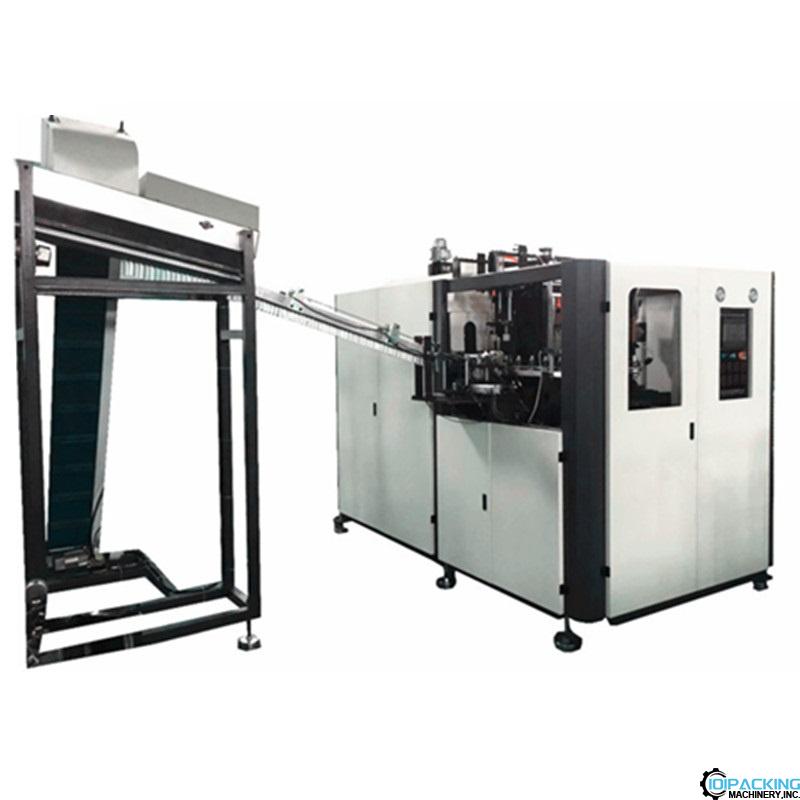

Automatic 2 cavity bottle blowing producing machine

Model:PK-ABM02
Output:2400Bottle/hour
Max. Volume:2000ml
Max. Height:330mm
Max.Diameter:105mm
Cavities:2:
Mold Open Stroke:130mm
Power:48KW
Total Rate Power:34KW
PowerConsumption:20KW
Operation Pressure:0.8-1.0MPa
Low Pressure Air Consuming:2.0m3/min
Blowing Pressure:2.6-4.0:MPa
High Pressure Air Consuming:2.4m3/min
Main Machine Size(L*W*H):3000*1800*2400mm
Machine Weight:4000KGS

Automatic 2 cavity bottle blowing producing machine

Model:PK-ABM02

Output:2400Bottle/hour

Max. Volume:2000ml

Max. Height:330mm

Max.Diameter:105mm

Cavities:2:

Mold Open Stroke:130mm

Power:48KW

Total Rate Power:34KW

PowerConsumption:20KW

Operation Pressure:0.8-1.0MPa

Low Pressure Air Consuming:2.0m3/min

Blowing Pressure:2.6-4.0:MPa

High Pressure Air Consuming:2.4m3/min

Main Machine Size(L*W*H):3000*1800*2400mm

Machine Weight:4000KGS

Automatic bottle blowing machine is used to blow PET bottles from 100ml to 2L.Application:carbonated bottle, mineral water, oil bottle, cosmetics, Beverage bottle, cosmetic bottle, medicine bottle, jar etc.
