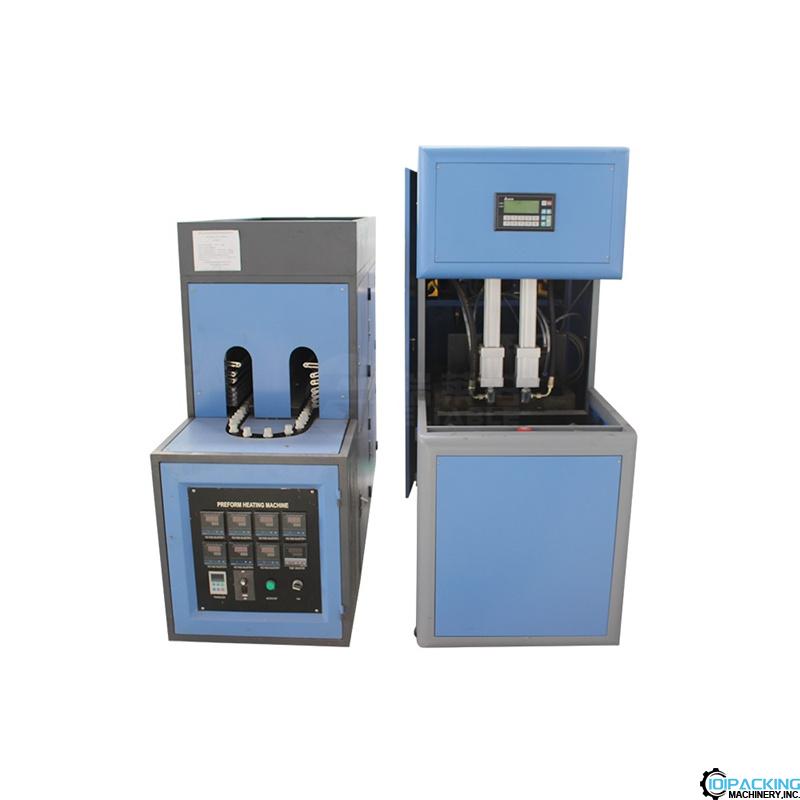

Semi automatic 2 cavity PET bottle blowing making machine

Mould cavity number:2Pcs
Theoretical output:800-1000Pcs/hr
Container volume:0.1-2L
Preform caliber:38MM
Max. bottle diameter:100MM
Max. bottle height:200MM
Max. mould thickness:210Mm
Mould opening stroke(adjustable):160Mm
Operating pressure:0.8-1.0:Mpa
Blowing pressure:2.0-3.0:Mpa
Machine dimension(L*W*H):1600*600*1610mm
Machine weight:500kg
Heater dimension(L*W*H):1100*600*1100mm
Heater weight:250Kg

Semi automatic 2 cavity PET bottle blowing making machine

Mould cavity number:2Pcs

Theoretical output:800-1000Pcs/hr

Container volume:0.1-2L

Preform caliber:38MM

Max. bottle diameter:100MM

Max. bottle height:200MM

Max. mould thickness:210Mm

Mould opening stroke(adjustable):160Mm

Operating pressure:0.8-1.0:Mpa

Blowing pressure:2.0-3.0:Mpa

Machine dimension(L*W*H):1600*600*1610mm

Machine weight:500kg

Heater dimension(L*W*H):1100*600*1100mm

Heater weight:250Kg

It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
