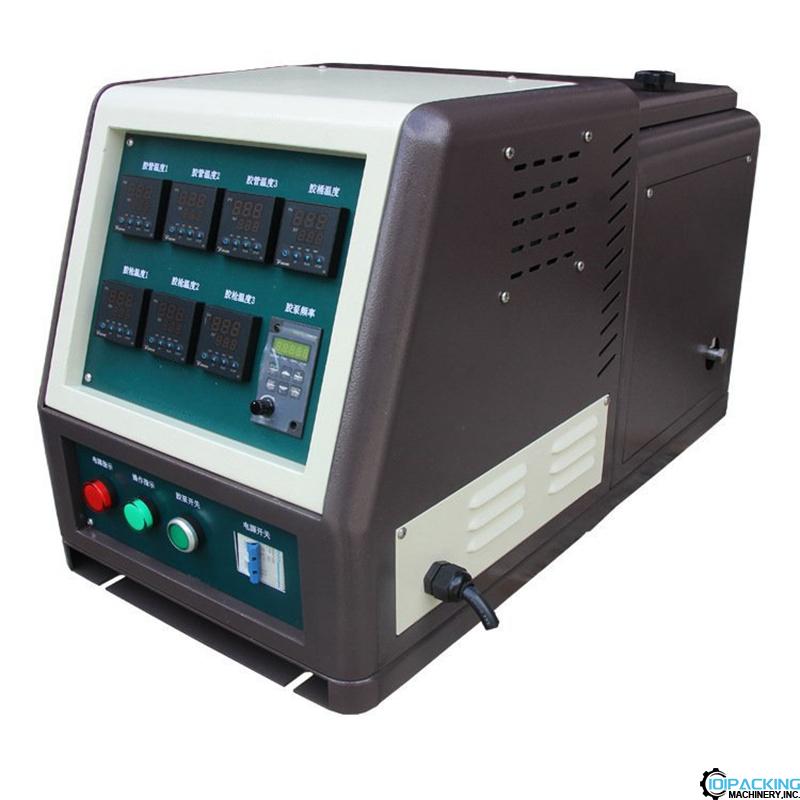

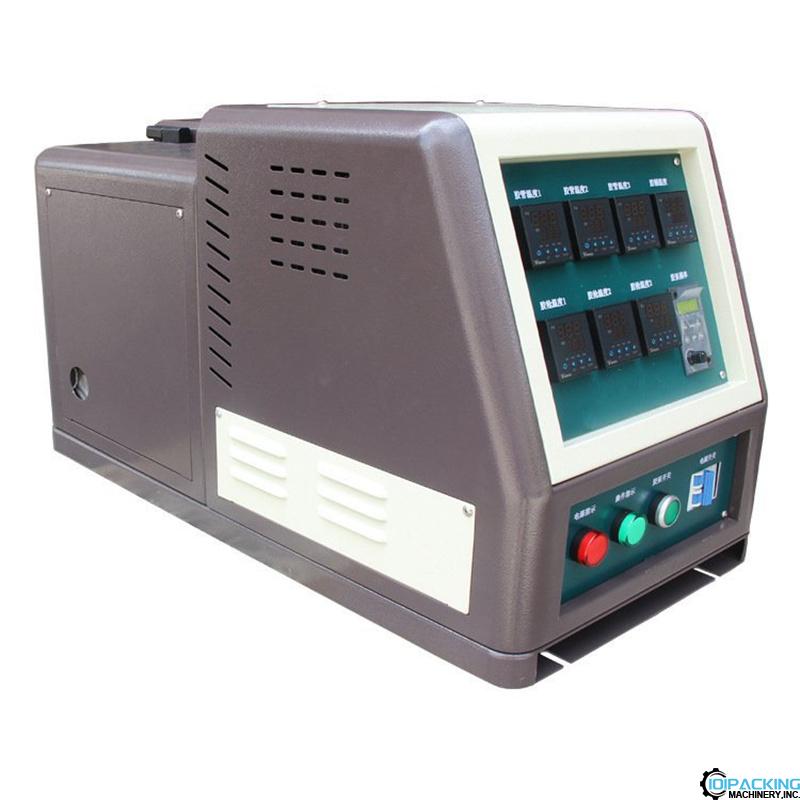

Hot melt glue dispensing machine

Model:PK-G10B (gear pump)
Glue tank capacity: 10KGS
Motor specification: AC~250W adjustable speed
Hose capacity: 3 groups (maximum)
Gun body function: strip, flake, fog
Gun body type: automatic gun group, manual gun group
Hose specifications: 4, 6, 8, 10, 12, 24 (feet)
Power demand: 220V AC single-phase, 380V AC three-phase
Operating temperature: 230° (maximum)
Melting capacity: 5-15KGS/HR (sol viscosity 3000CPS)
Glue output power: 5-15KGS/HR (100rpm*60*0.9)
The wind pressure of the gun body: 4KG/cm2
Overall power consumption: 3300W/4FT (2 groups)
Body weight: 45KGS
Body size: 600*340*650mm
