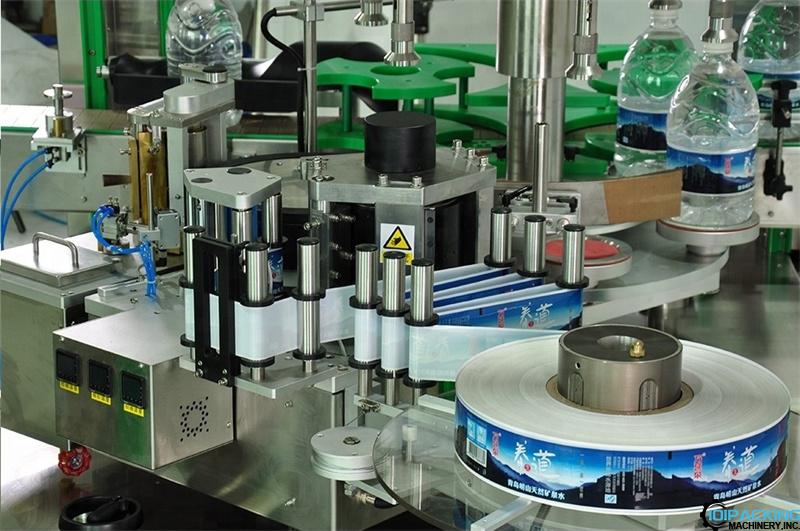

Automatic water round bottle OPP film hot melt glue rotary labeling machine

Model:PK-6R
Label size:L:130-330mm
W:20-145mm
Labeling speed:6 pcs heads TYRY-0604R 4000 BPH
8 pcs heads GR-6R 6000 BPH
12 pcs heads GR-9R 9000 BPH
16 pcs heads GR-16R 15000 BPH
20 pcs heads GR-20R 24000 BPH
24 pcs heads GR-24R 36000 BPH
diameter of the label:Inner diameter: 152mm
Outer diameter: 600mm
Glue place:Label head and tail
Speed adjustment method:
Conveyor belt:L: 3500mm
W: 100mm
H: 1100mm ±30mm
Air consumption:5-6 Mpa
Machine net size (L*W*H):2420*2500*2050mm

Automatic water round bottle OPP film hot melt glue rotary labeling machine

Model:PK-6R

Label size:L:130-330mm

W:20-145mm

Labeling speed:6 pcs heads TYRY-0604R 4000 BPH

8 pcs heads GR-6R 6000 BPH

12 pcs heads GR-9R 9000 BPH

16 pcs heads GR-16R 15000 BPH

20 pcs heads GR-20R 24000 BPH

24 pcs heads GR-24R 36000 BPH

diameter of the label:Inner diameter: 152mm

Outer diameter: 600mm

Glue place:Label head and tail

Speed adjustment method:

Conveyor belt:L: 3500mm

W: 100mm

H: 1100mm ±30mm

Air consumption:5-6 Mpa

Machine net size (L*W*H):2420*2500*2050mm

Labeling production size(L*W*H):L: 50-300mm¢: 40-100mm

Remark: Can be customized, the height adjustment range of each machine: ±50mm

Labeling accuracy :±1mm

Max out label speed :100M/min

Heating glue temperature:120~160℃

Uninterrupted-adjust rate :Uninterrupted-adjust rate

Power consumption :8000 W

power supply :Three phase 380V 50Hz

(According to local voltage in different countries, can add voltage transformer.)

Machine net weight:About 3000kg
