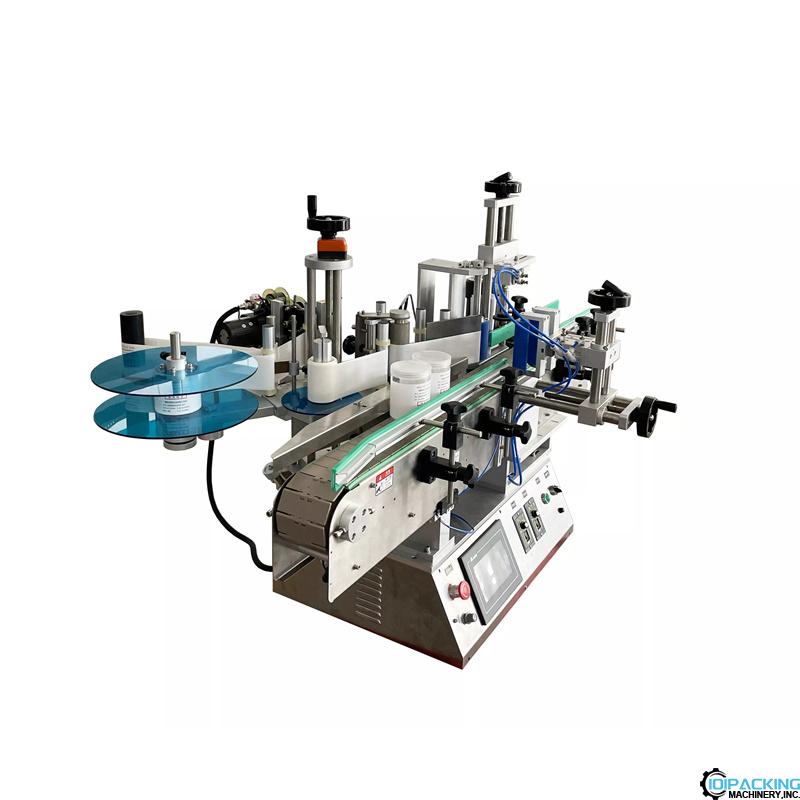

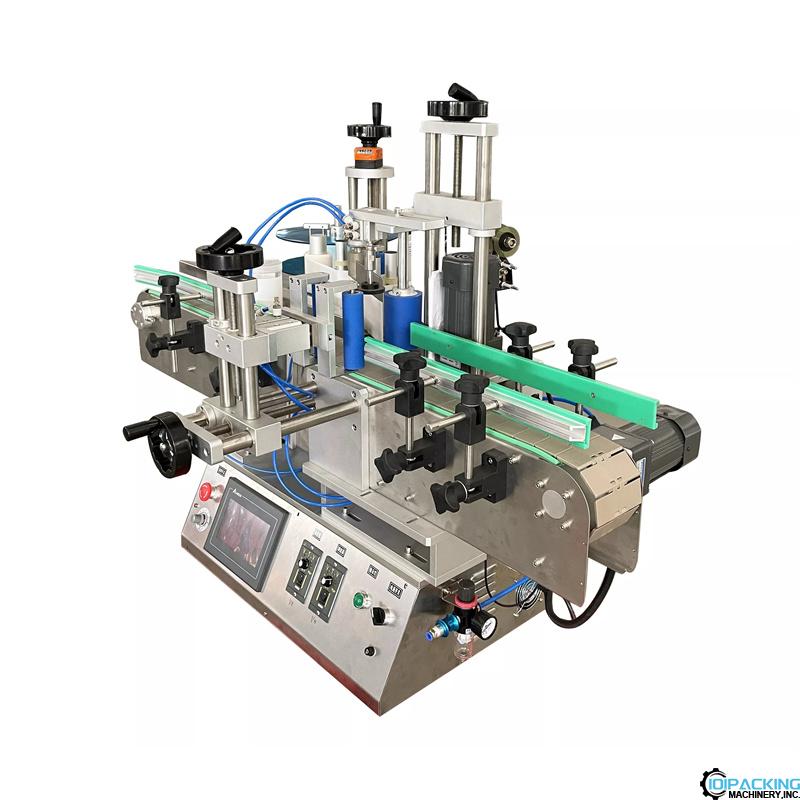

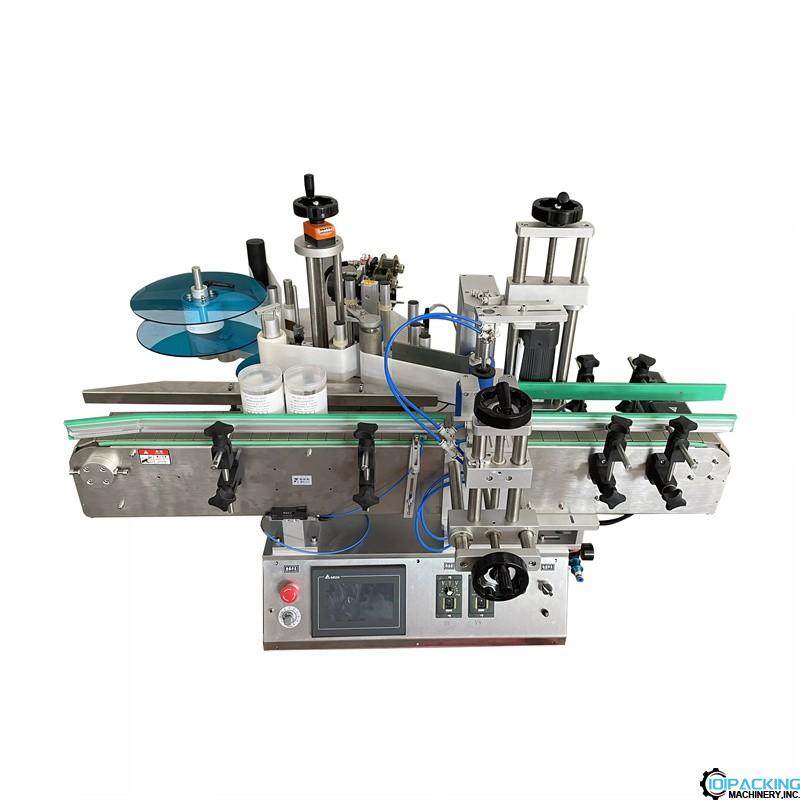

Automatic tabletop bottle positioning labeling machine

Model:PK-L62
Labeling Precision:±1mm (excluding product and label error);
Power Supply:AC220V    50/60Hz    700W
Conveyor Speed:5~25 meters/minute;
Labeling Speed:10~120 pcs/min (Related to product, label size);
Sticker Out-Come Speed:Stepping Motor: 5~22 meters/minute
Application Bottle Size:External diameter: Φ25-100mm;
:Height: 25mm~300mm;
Applicable label size:Label Length: 20mm~290mm;
:Label Width(body paper width): 20mm~120mm;  180mm (option)
Inner dia. of paper roll:Φ76mm
External dia. of paper roll:Max. Φ300mm

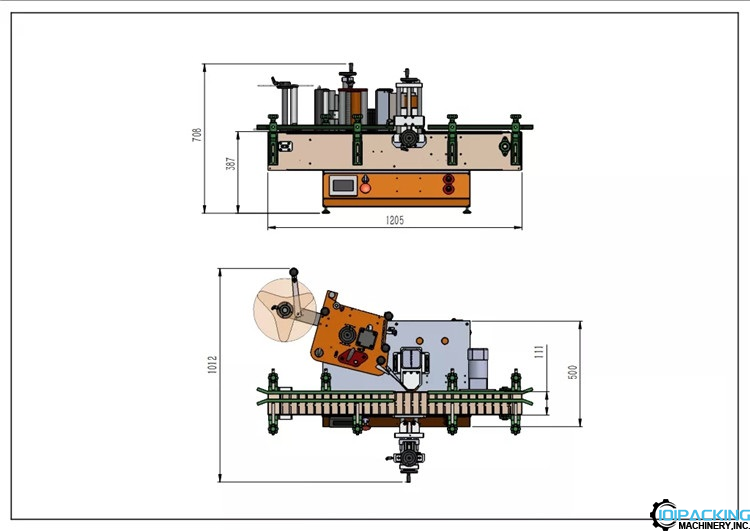

Size (LXWXH):1400mm×850mm×1100mm
Weight:85kgs

Automatic tabletop bottle positioning labeling machine

Model:PK-L62

Labeling Precision:±1mm (excluding product and label error);

Power Supply:AC220V    50/60Hz    700W

Conveyor Speed:5~25 meters/minute;

Labeling Speed:10~120 pcs/min (Related to product, label size);

Sticker Out-Come Speed:Stepping Motor: 5~22 meters/minute

Application Bottle Size:External diameter: Φ25-100mm;

:Height: 25mm~300mm;

Applicable label size:Label Length: 20mm~290mm;

:Label Width(body paper width): 20mm~120mm;  180mm (option)

Inner dia. of paper roll:Φ76mm

External dia. of paper roll:Max. Φ300mm

Size (LXWXH):1400mm×850mm×1100mm

Weight:85kgs
