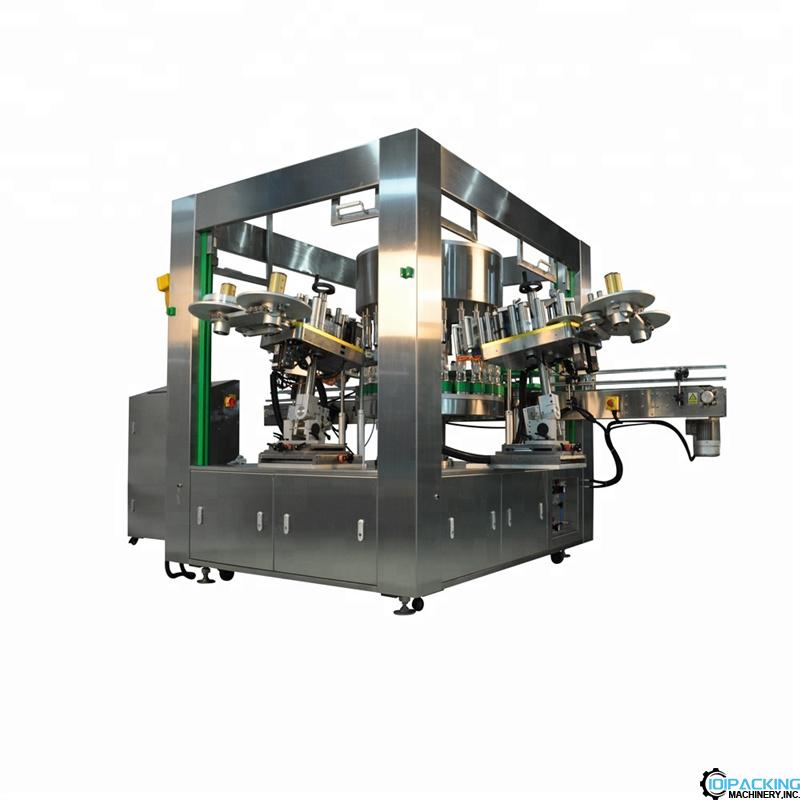

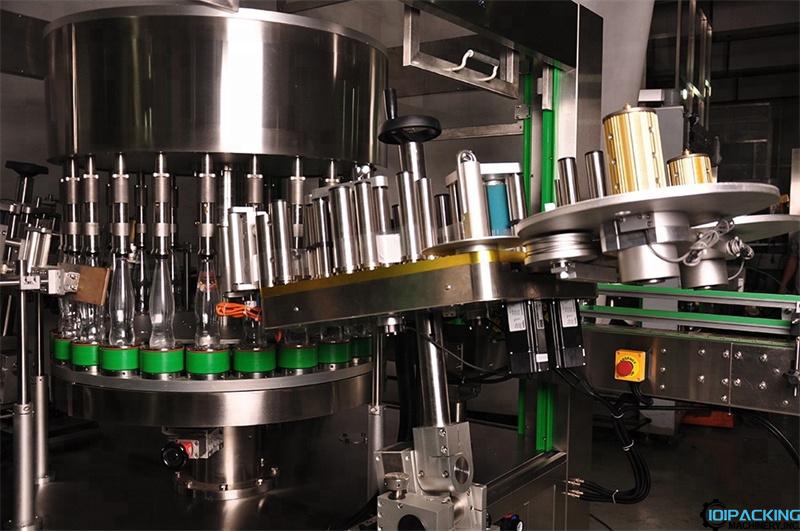

Automatic high speed bottpe hot melt glue OPP film labeling machine

Model:PK-OPP-l
Power consumption (W):8000
power supply:Three phase 380V 50Hz
Label size:L:130-330mm
W:20-145mm
Labeling product size:L: 50-300mm ¢: 40-100mm
Remark: Can be customized, the height adjustment range of each machine: ±50mm
labeling speed:4000 -36000 BPH
Max outer diameter of the label:600mm
Label inner core diameter?:152mm
Conveyor belt:L:3000mm
W: 100mm
H: 1100mm ±30mm
Remark: Can be customized, the height adjustment range of each machine: ±50mm
Air consumption(MPA):5-6
Machine net size(L*W*H):2420*2500*2050mm
Labeling accuracy:±1mm
Max speed of come out label:100M/min

Automatic high speed bottpe hot melt glue OPP film labeling machine

Model:PK-OPP-l

Power consumption (W):8000

power supply:Three phase 380V 50Hz

Label size:L:130-330mm

W:20-145mm

Labeling product size:L: 50-300mm ¢: 40-100mm

Remark: Can be customized, the height adjustment range of each machine: ±50mm

labeling speed:4000 -36000 BPH

Max outer diameter of the label:600mm

Label inner core diameter?:152mm

Conveyor belt:L:3000mm

W: 100mm

H: 1100mm ±30mm

Remark: Can be customized, the height adjustment range of each machine: ±50mm

Air consumption(MPA):5-6

Machine net size(L*W*H):2420*2500*2050mm

Labeling accuracy:±1mm

Max speed of come out label:100M/min
