Automatic 3 color drink straw extruding making machine

Color		single	Two	Three
Model		PK-S011	PK-S012	PK-S013
Main parts	Main parts are: extruder, cooling water tank, vacuum shaping equipment, air compressor, hauling cutting system, single color, two color or tricolor pipes can be realized.
Power supply	Main screw	380v ,3phase,50hz,7.5kw(VFD)
	Sub-screw	/	0.75kw	0.75×2kw
	Heating	7kw	9.56kw	12kw
	Hauling motor	0.75kw(VFD)
	Cutting motor	0.75kw(VFD)
	Total power	16.5kw	20kw	22.5kw
Temperature Controller		5sets	8sets	11sets
Electric control cabinet		1set	1set	1set
Automatic Counting Device		1set	1set	1set
Way of Hauling		By rubber roller
Way of cutting		Rotatory cutting
Cooling water tank	Usually 3.5m, can be adjusted updown, right left, forward backward.
Option	Vacuum pump (0.75kw)		Air compressor (2kw)

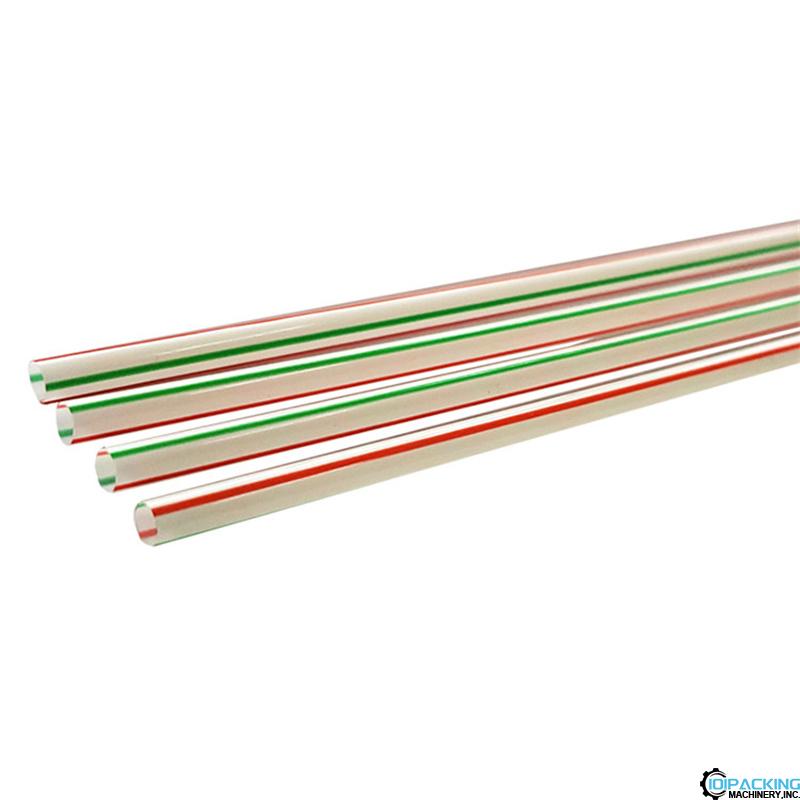

Specification of Pipe	Material	PP PE etc.
	Diameter	2mm~13mm
	Length	Customizable
	Speed	600~1200pcs/min
	Color	Single	Two	Three
	Straight or spiral strips	√	√	√
	Cutting End	90°/90°,90°/45°,90°/60°,45°/45°,60°/60
Machine dimension L×W×H		9m×1m×1.7mm	9m×1.5m×1.7m	9m×2m×1.7m
Weight of equipment		1000KG	1500KG	2000KG
