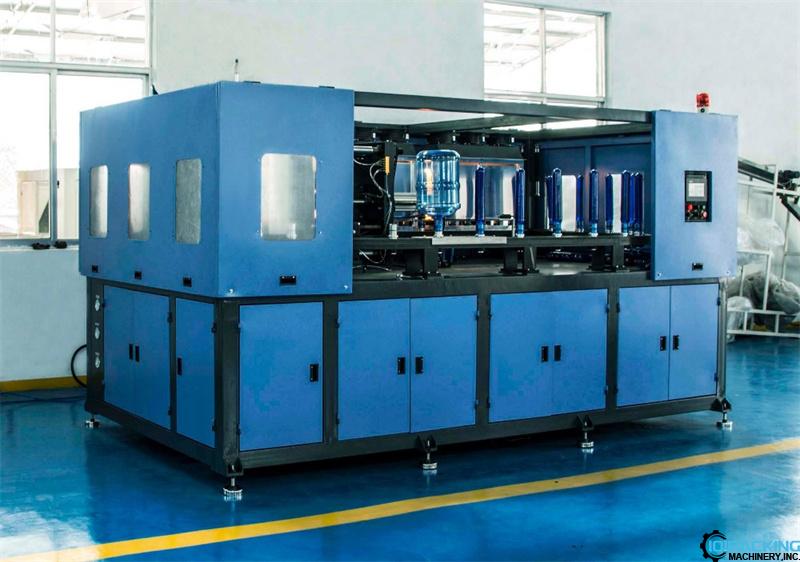

Automatic 20L water pail 5 gallon water drum blowing mahcine

Model:PK-ABM01-20L
Bottle material:PET
container volume:10-20L
Bottle output:200pcs/hr
max preform length:490mm
max preform diameter:300mm
clamping stroke:370mm
stretching stroke:650mm
bottom stroke:30-70mm
clamping force:480KN
HP air flow:1.2cbm
HP air pressure:3.0Mpa
LP air?flow:1.0cbm
LP air pressure:1.0Mpa
power:90KW
voltage:3P 220/380v
Machine dimension:4000*2250*2200mm
Machine weight:5000kg

Automatic 20L water pail 5 gallon water drum blowing mahcine

Model:PK-ABM01-20L

Bottle material:PET

container volume:10-20L

Bottle output:200pcs/hr

max preform length:490mm

max preform diameter:300mm

clamping stroke:370mm

stretching stroke:650mm

bottom stroke:30-70mm

clamping force:480KN

HP air flow:1.2cbm

HP air pressure:3.0Mpa

LP air?flow:1.0cbm

LP air pressure:1.0Mpa

power:90KW

voltage:3P 220/380v

Machine dimension:4000*2250*2200mm

Machine weight:5000kg

The machine is suitable for making 10L-20L PET bottles.
