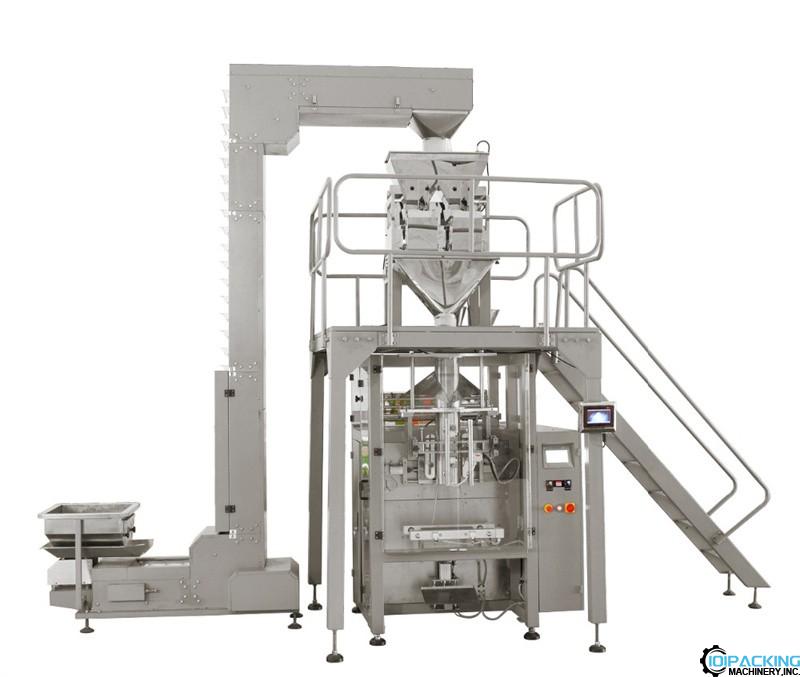

Automatic 2/4 linear weighing head bag packaging machine

Model:PK-240W/420W
Filling:Multi-heads weigher
Bag style:Back sealed bag,pillow bag
Volume/bag:From 0g-5kg/8/9/10kg
Bag size:L80-300mm, W50-200mm(Customized)
Packing speed:5-60 bags/min
Control system:PLC+ touch screen
material:stainless steel
Pneumatic:0.65Mpa,0.3cbm/min
voltage:380V, 50Hz,3P/ 220V, 60Hz, 3P
Weight:G.W.1000kg
Dimension:about 5*2*3.5m for the whole packing line
Power:2.5KW

Automatic 2/4 linear weighing head bag packaging machine

Model:PK-240W/420W

Filling:Multi-heads weigher

Bag style:Back sealed bag,pillow bag

Volume/bag:From 0g-5kg/8/9/10kg

Bag size:L80-300mm, W50-200mm(Customized)

Packing speed:5-60 bags/min

Control system:PLC+ touch screen

material:stainless steel

Pneumatic:0.65Mpa,0.3cbm/min

voltage:380V, 50Hz,3P/ 220V, 60Hz, 3P

Weight:G.W.1000kg

Dimension:about 5*2*3.5m for the whole packing line

Power:2.5KW
