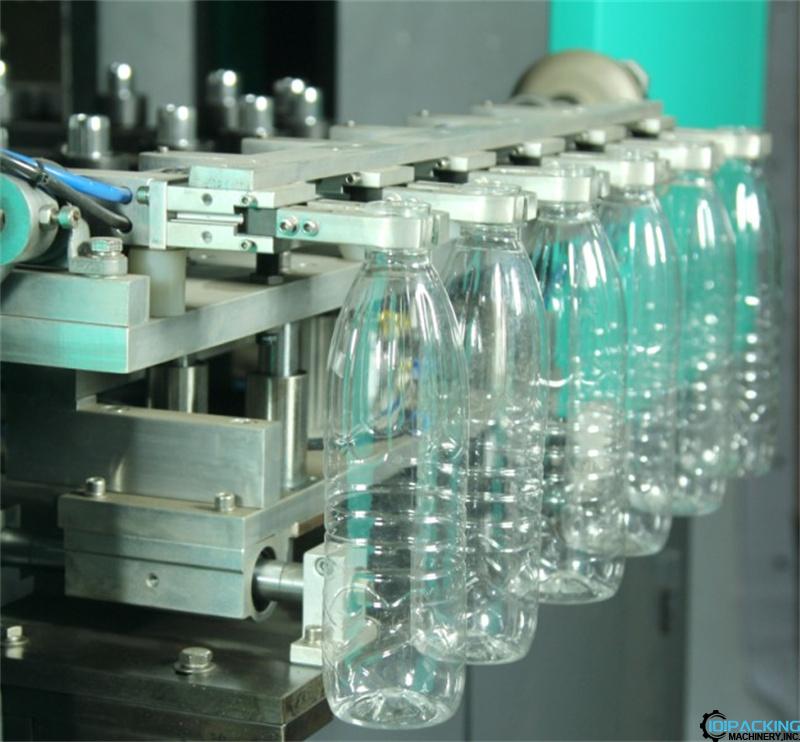

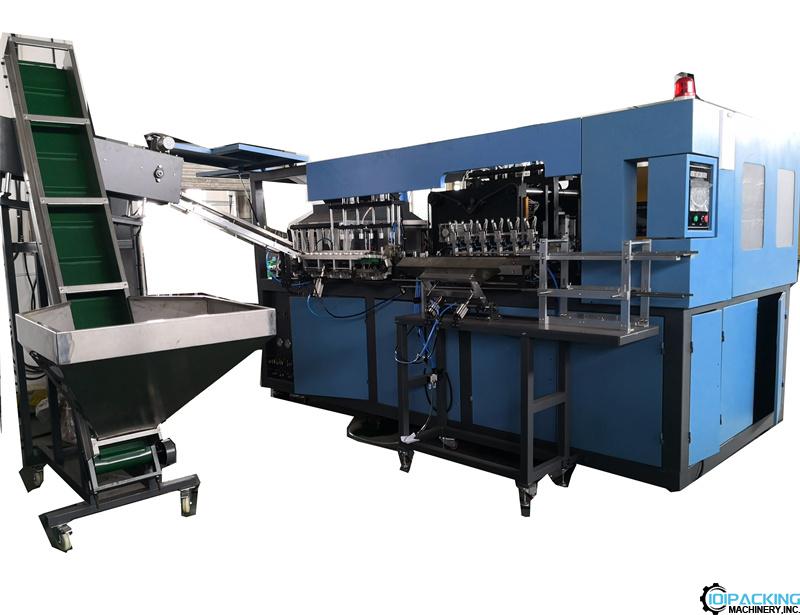

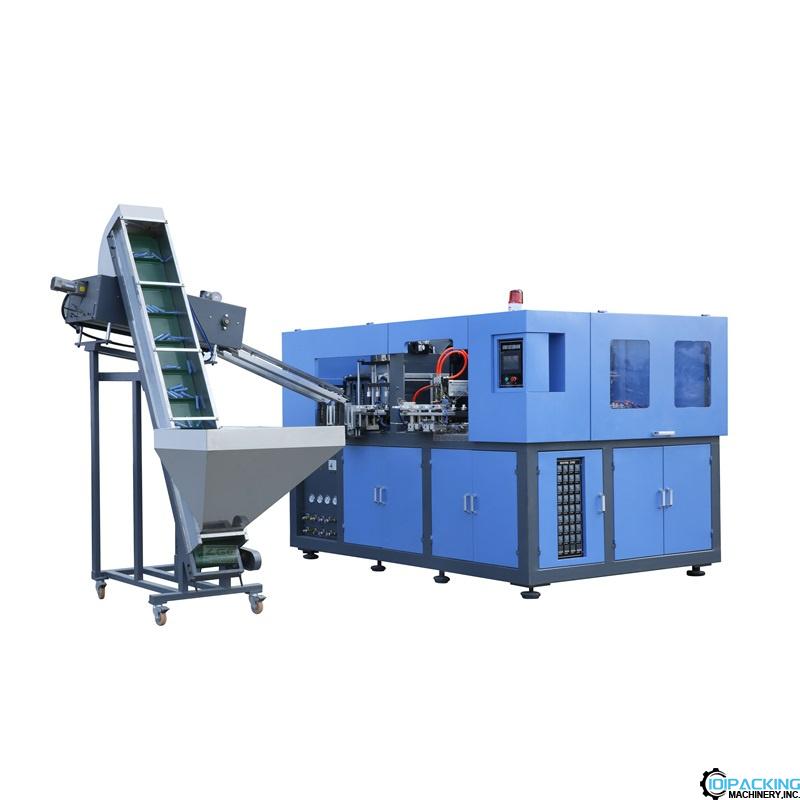

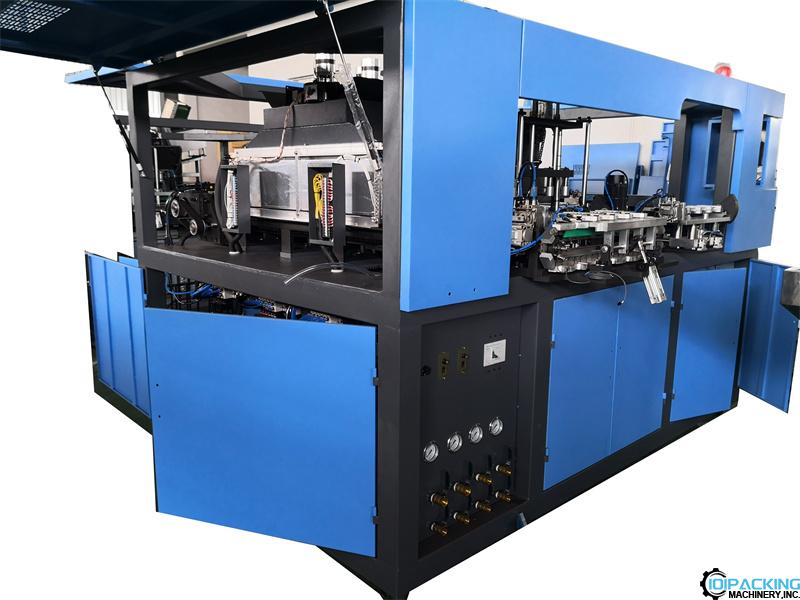

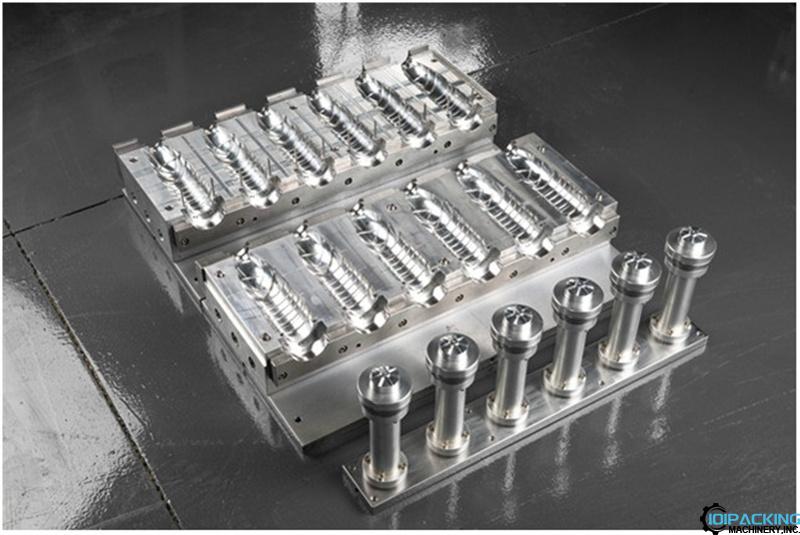

Autoamtic PET water bottle 6 cavity mold blowing machine

Model:PK-ABM06
Main machine:Maximum Bottle capacity:2000ml
Maximum bottle diameter:Φ106mm
Neck diameter:Φ18~38mm

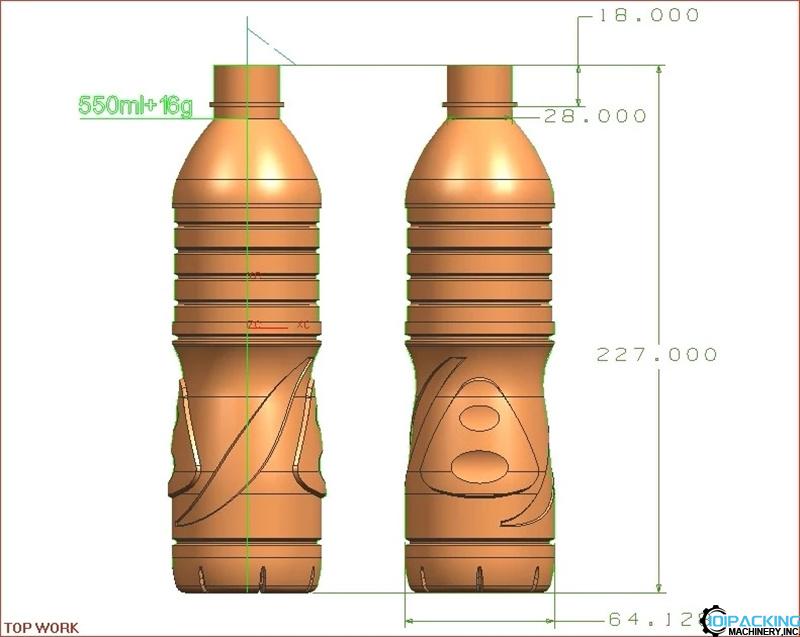

Maximum bottle height under neck:<330mm

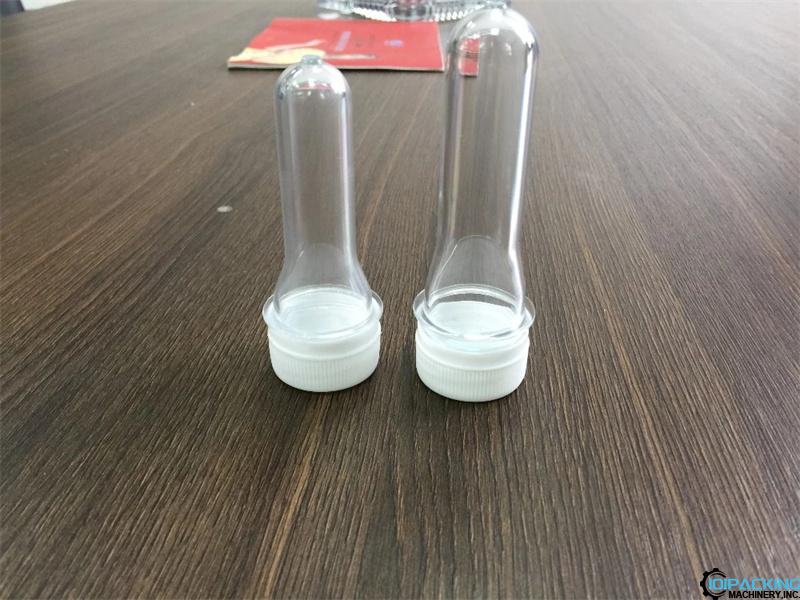

Maximum preform height under neck:<155mm
Clamping stroke:120mm
Bottom die stroke :50mm
Bottle pitch:114.3mm
Maximum output rate (bph):8,000(500ml water bottle) 7,200(1500ml water bottle)

Autoamtic PET water bottle 6 cavity mold blowing machine

Model:PK-ABM06

Main machine:Maximum Bottle capacity:2000ml

Maximum bottle diameter:Φ106mm

Neck diameter:Φ18~38mm

Maximum bottle height under neck:<330mm

Maximum preform height under neck:<155mm

Clamping stroke:120mm

Bottom die stroke :50mm

Bottle pitch:114.3mm

Maximum output rate (bph):8,000(500ml water bottle) 7,200(1500ml water bottle)

Number of molds:6

Heating part:Number of heating modules:5

Number of heating lamps:10

Number of preform bases:100

Electric part:Voltage:220/380V

Frequency:50/60Hz

Service power:30~40kw/h

Installation power:110kw

Air source

(High pressure air consumption depends on PET bottle volume, altitude):Low pressure:1Mpa

Low pressure air consumption:2m3/min

High pressure:3.5Mpa

High pressure air consumption:8m3/min

Cooling water:Pressure :2~4bar

Cooling water (≤18℃):Flux:9m3/h

Weight :G.W.:Around 10 ton

Dimension:Main machine (L×W×H):5800×2600×2600mm /4000kg

Preform unscrambler(L×W×H):4500×3500×3500mm /550kg

High speed bottle blowing machine is used for PET water bottle, hot filling bottle, steam drink bottle, edible oil bottle, pesticide bottle and so on.

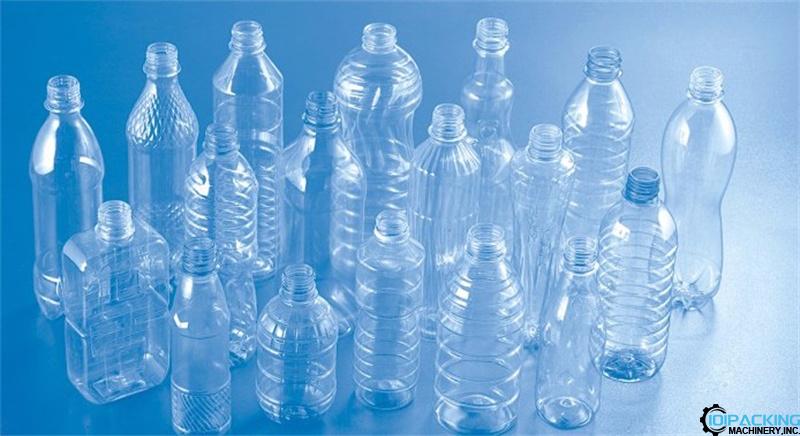

The blow moulding machine is suitable for the production of 0.1L-2.0L plastic containers and round and square bottles.

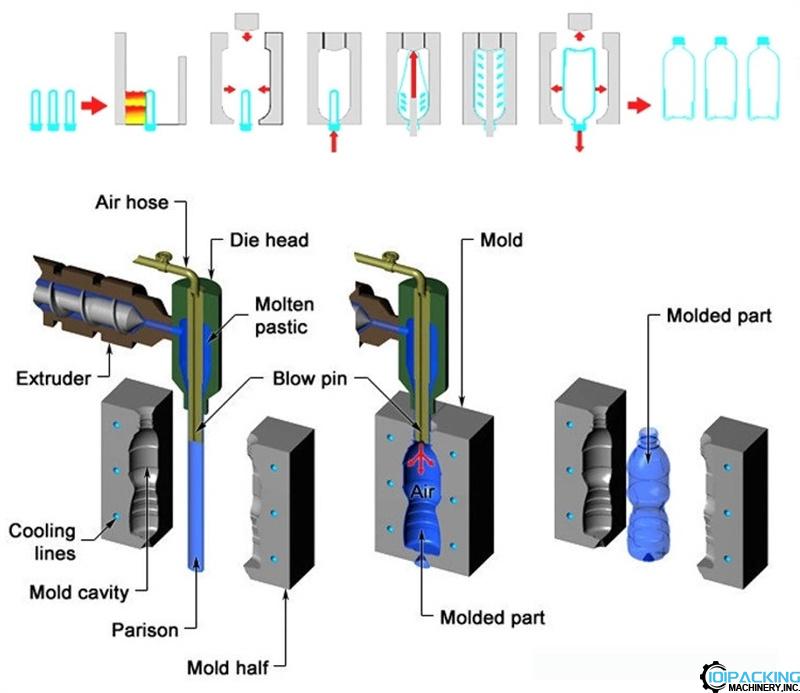

Fully automatic blow molding machine, freeing hands all the time, automatically adding preforms, automatic molding.
