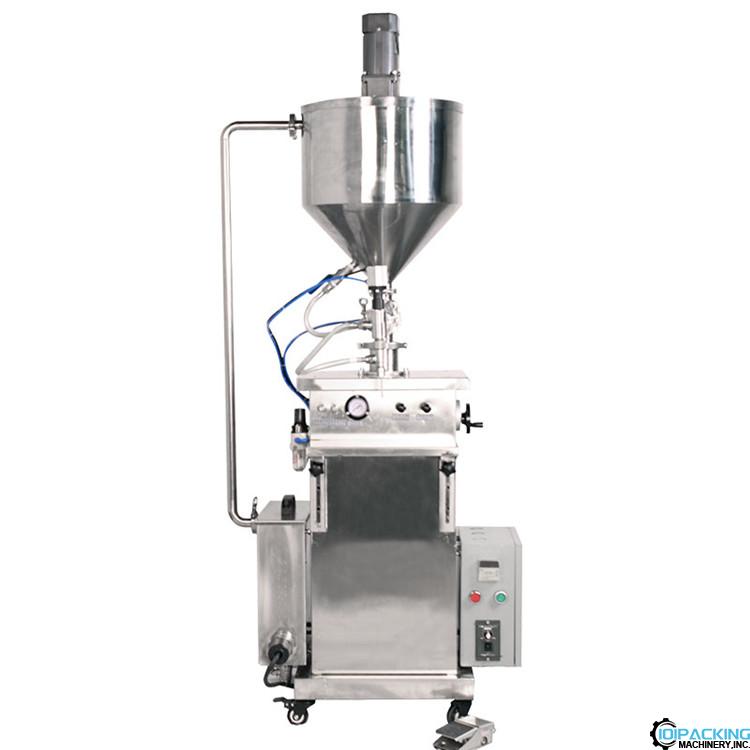

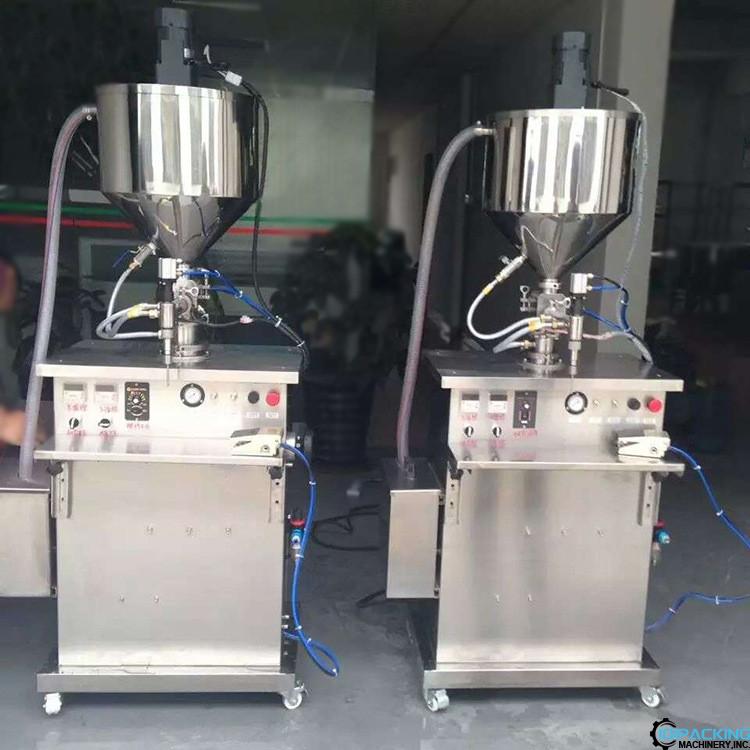

Semi automatic vertical hopper heating mixing filling machine

Model:PK-VF100
Driven Type:Electric, Pneumatic
Filling range 100-1000ml (Adjustable)
Diamension:580x430x1850mm
Weight:125KG
Filling material:Flowing Liquid
Building contact material parts:304 / 316SUS
Filling speed 20-40 bottles/min
Filling accuracy:≤±1%
Air pressure 0.5-0.8MPa
Working pressure 0.2-0.5MPa
Air Consumption:0.05 m³
Power Supply:220V/380V, 50HZ/60HZ
Total Power:4.8KW
Noise:≤70dB
Mixing Motor Power:120W
Mixing Speed:0-60r/min
Hopper capacity:40L
Heating Power:4.5KW

Semi automatic vertical hopper heating mixing filling machine

Model:PK-VF100

Driven Type:Electric, Pneumatic

Filling range 100-1000ml (Adjustable)

Diamension:580x430x1850mm

Weight:125KG

Filling material:Flowing Liquid

Building contact material parts:304 / 316SUS

Filling speed 20-40 bottles/min

Filling accuracy:≤±1%

Air pressure 0.5-0.8MPa

Working pressure 0.2-0.5MPa

Air Consumption:0.05 m³

Power Supply:220V/380V, 50HZ/60HZ

Total Power:4.8KW

Noise:≤70dB

Mixing Motor Power:120W

Mixing Speed:0-60r/min

Hopper capacity:40L

Heating Power:4.5KW

The vertical piston filling machine is used for the filling of relatively viscous materials, such as sauce soup, sauce, gelatin, grease, shampoo, shower gel and other materials, suitable for food, cosmetics, pharmaceutical and chemical, beverage and other industries. . The material contact parts are made of all stainless steel, which is easy to clean, easy to remove and wash, accurate in measurement and easy in operation. It is widely used in small enterprises and home business.
