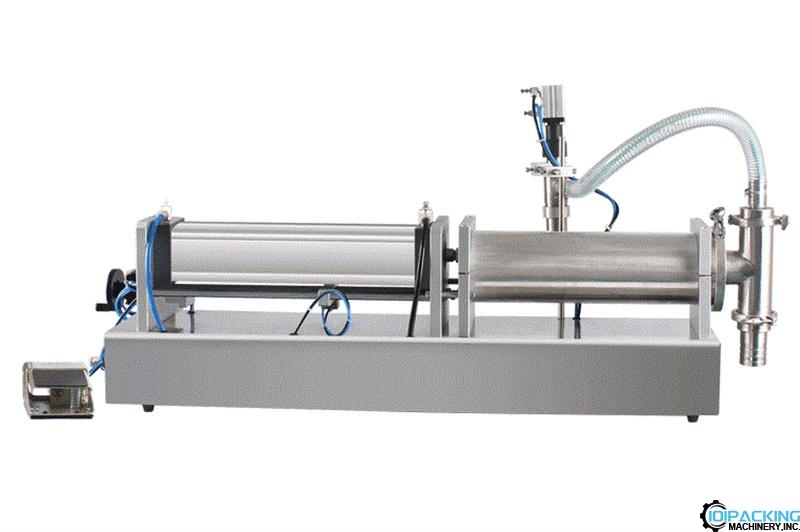

Semi automatic piston pump type 5L filling machine

Model:PK-F01-5L
Filling range:1000ml-5000ml
Air pressure:0.4-0.6Mpa
Dimension(L*W*H):1100*250*135mm
Weight:50kg
Filling speed:0-10 bottle/min
Filling material:Liquid Low Flow Rate
Filling head:1 Heads
Material:Stainless Steel
Filling Accuracy:±0.5%

Semi automatic piston pump type 5L filling machine

Model:PK-F01-5L

Filling range:1000ml-5000ml

Air pressure:0.4-0.6Mpa

Dimension(L*W*H):1100*250*135mm

Weight:50kg

Filling speed:0-10 bottle/min

Filling material:Liquid Low Flow Rate

Filling head:1 Heads

Material:Stainless Steel

Filling Accuracy:±0.5%

Semi-automatic full pneumatic liquid filling machine(5-5000ml) ,full air bottling machine for liquid which is suitable for filling products of various liquid detergent and viscosity such as water injection and ointment etc. It is applied in such industries as daily chemical industry,pharmacy,food and pesticide etc. The semi-automatic piston type filling machine(full-pneumatic) is a new generation product developed on the basis of the original electric combined machines.It adopts pneumatic components to replace the electric control circuit,Therefore,It is especially suitable for use in damp conditions or conditions with explosion-proof requirements.
