Semi automatic manual BIB bag single head liquid filling machine

Model:PK-BIB01M
Weight:150kg:
Dimensions:1000mmL*1000mmW*1400mmH
Voltage:380V 220V other voltages can be customzied:
Power:2KW
Filling volume:1L-5L,5L-30L:
Filling nozzles:one nozzle,two nozzles
Filling accuracy:±1%:
Capacity:100-300bags/h
Filling products:juice,water,spirit,vinegar,liquid drinks,edible oil,engergy gel,syrup,tomato sauce,fruit jam,wine,milk etc:
Bag size:1L-30L
Air consumption:0.6m³/h:
Air pressure:0.6-0.8Mpa

Model:PK-BIB01M

Weight:150kg:

Dimensions:1000mmL*1000mmW*1400mmH

Voltage:380V 220V other voltages can be customzied:

Power:2KW

Filling volume:1L-5L,5L-30L:

Filling nozzles:one nozzle,two nozzles

Filling accuracy:±1%:

Capacity:100-300bags/h

Filling products:juice,water,spirit,vinegar,liquid drinks,edible oil,engergy gel,syrup,tomato sauce,fruit jam,wine,milk etc:

Bag size:1L-30L

Air consumption:0.6m³/h:

Air pressure:0.6-0.8Mpa

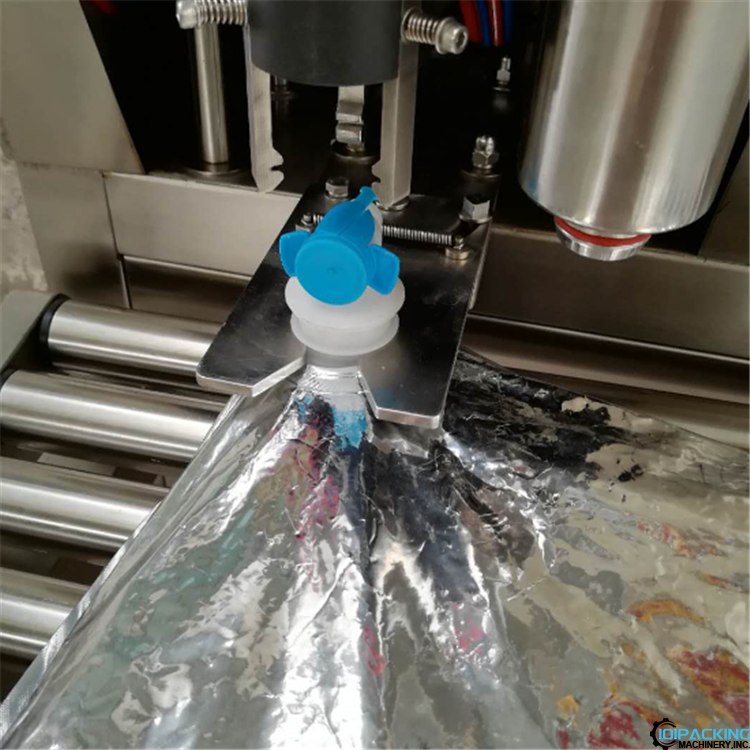

Manual operation typ[e bag in box filling machine is a small smart dosing machine with high filling precision. It includes filling and capping at one station. It,s easy to set up and adjust the filling volume. It,s widely used in bag in box filling of all kinds of liquid and semi-liquid like wine, edible oil, fruit juice, additives, milk, syrup, maple syrup,tomato sauce, fruit jam, egg paste,liquid fertilizer,soysauce etc.
