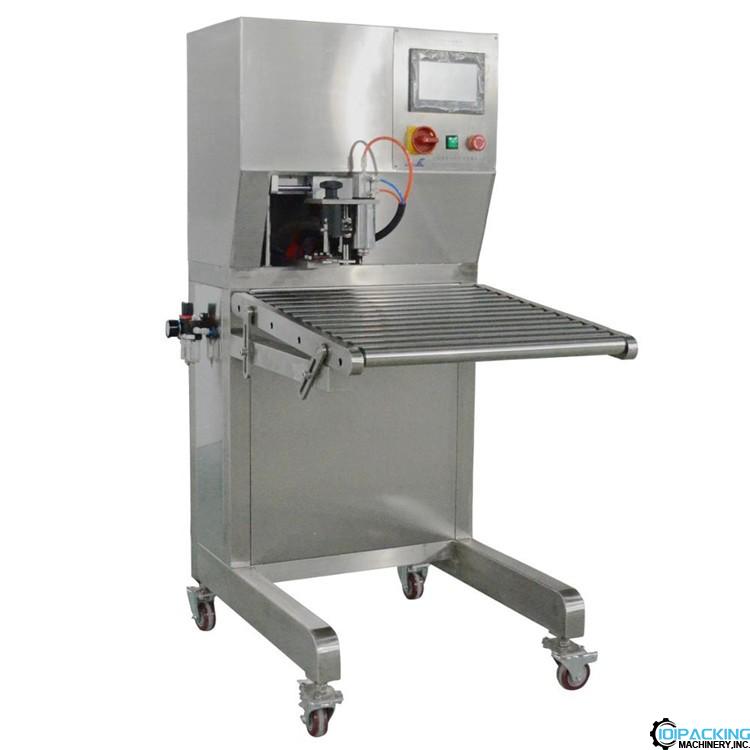

Semi automatic bag in box BIB single head liquid filling machine

Model:PK-BIB01
Filling range:10-25kg
Production capacity:400-500bags/h(for 1L) 180-200bags/h(for 5L)
Filling accuracy:≤±0.2% (10L or more)
Power supply AC220V/110V
Power:0.15KW
Air pressure:0.6-0.7Mpa
Air consumption:0.8Mpa 0.2m3/min
Machine size:1050*850*1550mm
Weight:160Kg

Semi automatic bag in box BIB single head liquid filling machine

Model:PK-BIB01

Filling range:10-25kg

Production capacity:400-500bags/h(for 1L) 180-200bags/h(for 5L)

Filling accuracy:≤±0.2% (10L or more)

Power supply AC220V/110V

Power:0.15KW

Air pressure:0.6-0.7Mpa

Air consumption:0.8Mpa 0.2m3/min

Machine size:1050*850*1550mm

Weight:160Kg

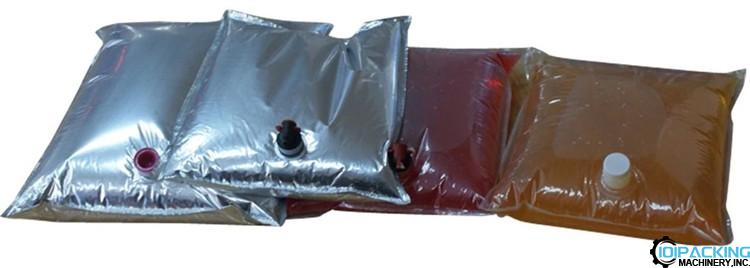

It can be widely used in bag-in-box filling applications for such liquid materials as wine, edible oil, fruit juice, additives, milk, syrup, alcoholic beverages and concentrated seasonings.

Semi automatic bag in box BIB single nozzle filling machine juice wine water oil syrup mayonaise large bag-in-box filler equipment09.jpg
