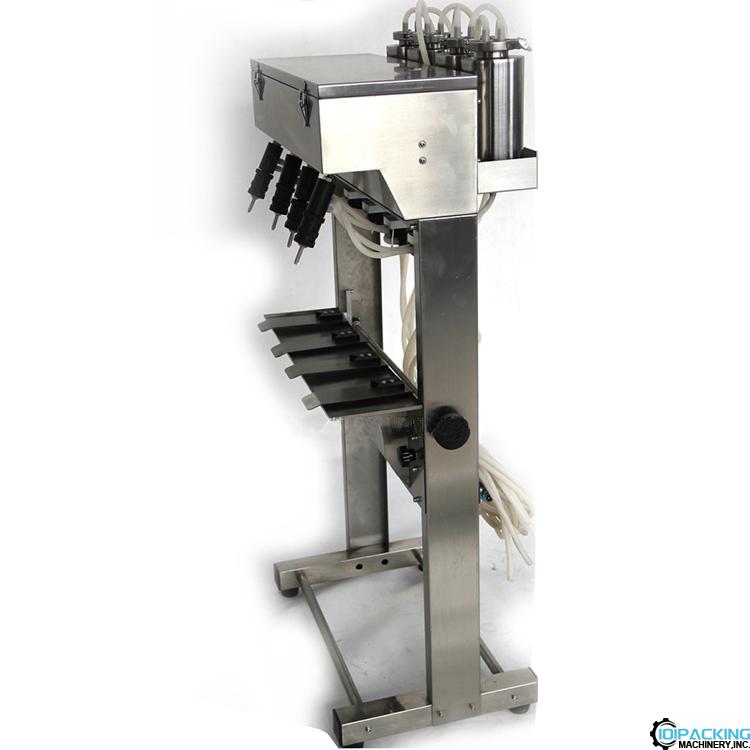

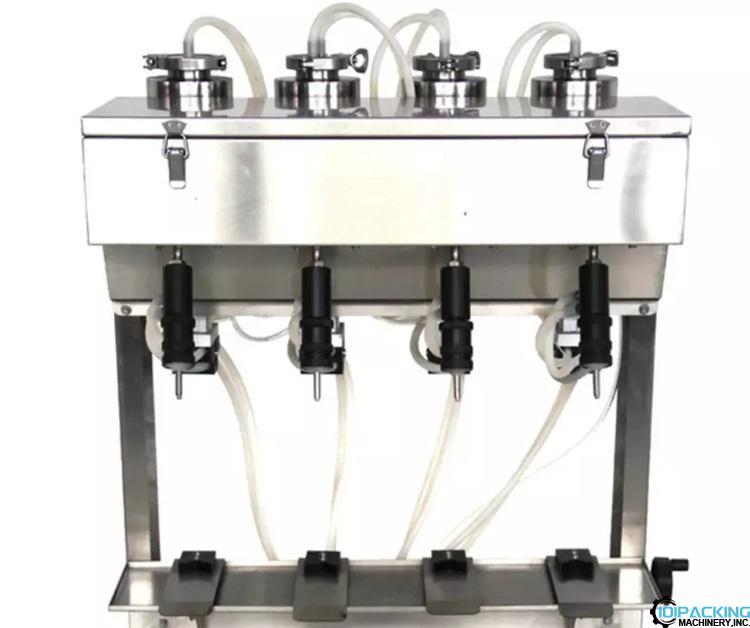

Semi automatic 4 nozzles vacuum filling machine

Model:PK-NF04B
Air pressure:0.5-0 .8 M
Level accuracy:± 1mm
Viscosity range:maximum applicable Viscosity 20Cps (static viscosity)
Production capacity:10-50 bottles / min
Bottle height:≤ 250mm
Bottle diameter:≤ φ 5mm- φ 35mm
Adjustable level high (from the bottle):15-50mm
Dimensions:660 × 470 × 1330mm
Weight:80KG

Semi automatic 4 nozzles vacuum filling machine

Model:PK-NF04B

Air pressure:0.5-0 .8 M

Level accuracy:± 1mm

Viscosity range:maximum applicable Viscosity 20Cps (static viscosity)

Production capacity:10-50 bottles / min

Bottle height:≤ 250mm

Bottle diameter:≤ φ 5mm- φ 35mm

Adjustable level high (from the bottle):15-50mm

Dimensions:660 × 470 × 1330mm

Weight:80KG

Semi automatic four-head vacuum filling machine mainly uses the vacuum negative pressure filling principle to draw liquid material into the bottle with continuous vacuum suction. The suction is generated by the vacuum generator, no foam is generated, the filling amount is the same, and the excess material can be sucked back to the barrel. The filling volume is determined by the depth of the filling head deep into the bottle. The double filling head can suck back excess liquid to ensure that the liquid level of each bottle is the same.
