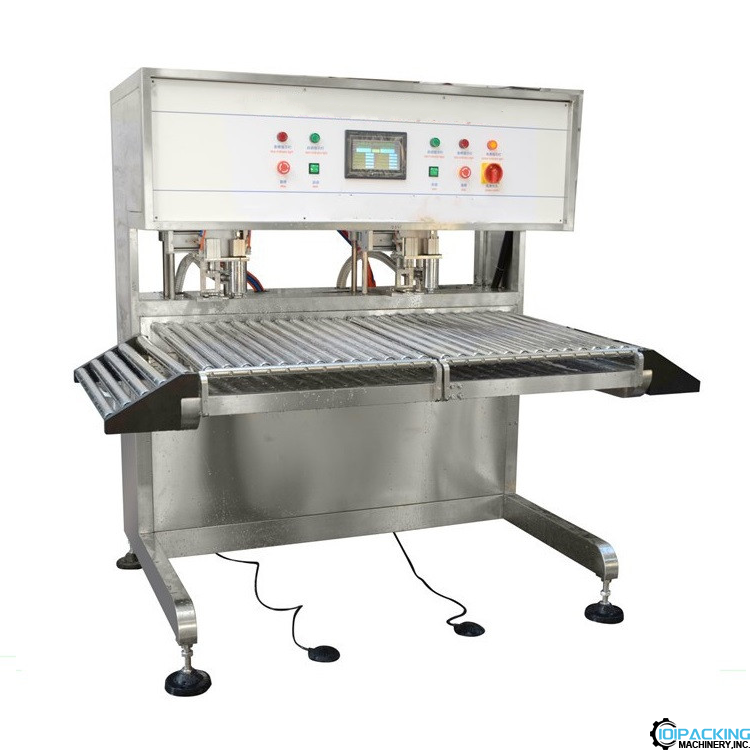

Double nozzles BIB big bag pouch liquid filling machine

Model:PK-BIB02A
Filling quantity range2L—25L
Filling precision:±0.5%
Filling speed:180---200 bags/hour (when filling 5L bags)
Material entrance pressure:0.3-0.35 Mpa
Power: 0.38KW
Supply voltage:AC220V/110V  50Hz/60Hz
Air consumption:0.2 m3/min
Air pressure:0.4—0.6Mpa
Dimemsion:2500*1500*1600mm
Weight:450Kg

Double nozzles BIB big bag pouch liquid filling machine

Model:PK-BIB02A

Filling quantity range2L—25L

Filling precision:±0.5%

Filling speed:180---200 bags/hour (when filling 5L bags)

Material entrance pressure:0.3-0.35 Mpa

Power: 0.38KW

Supply voltage:AC220V/110V  50Hz/60Hz

Air consumption:0.2 m3/min

Air pressure:0.4—0.6Mpa

Dimemsion:2500*1500*1600mm

Weight:450Kg

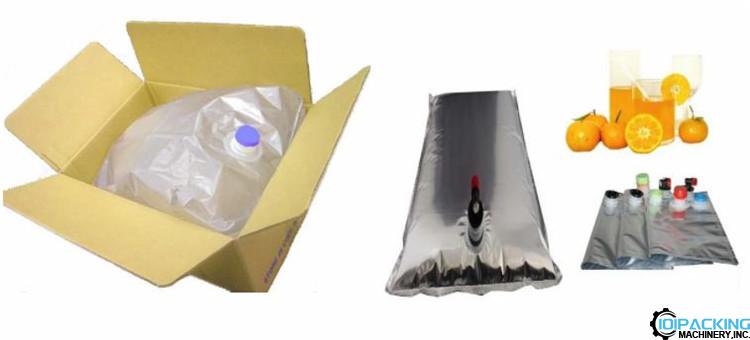

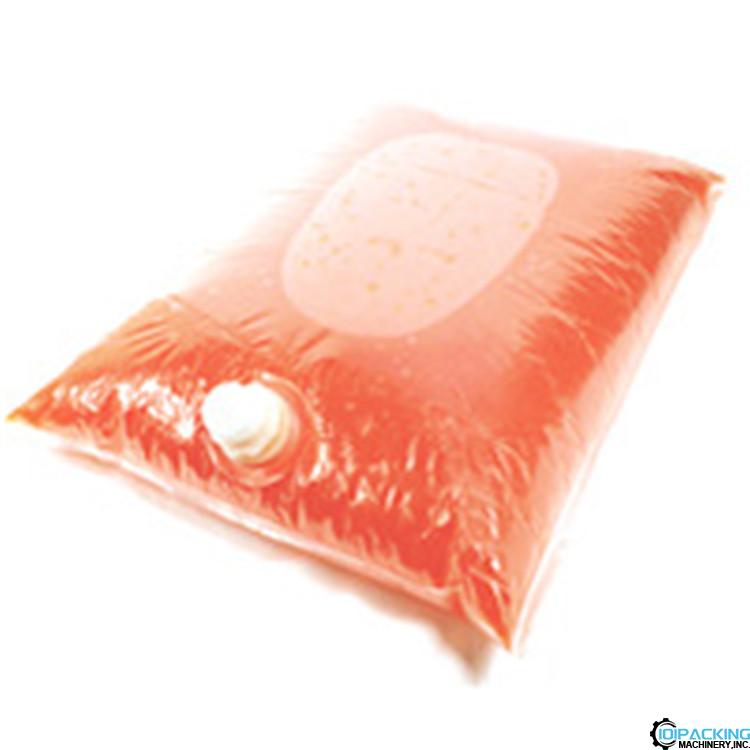

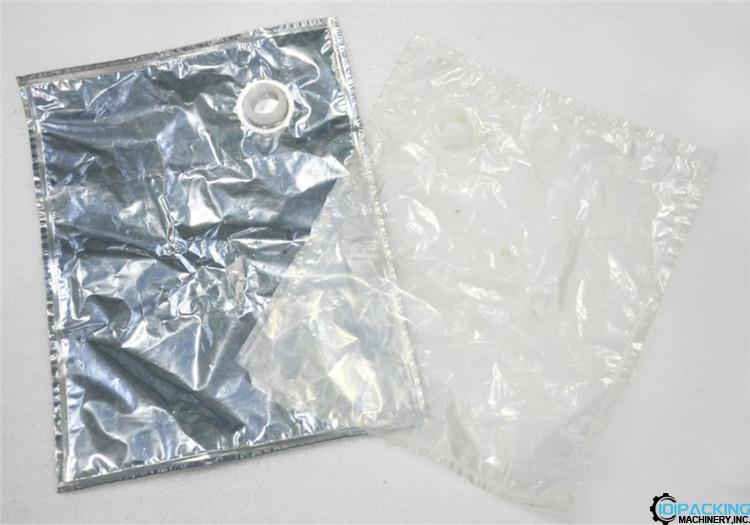

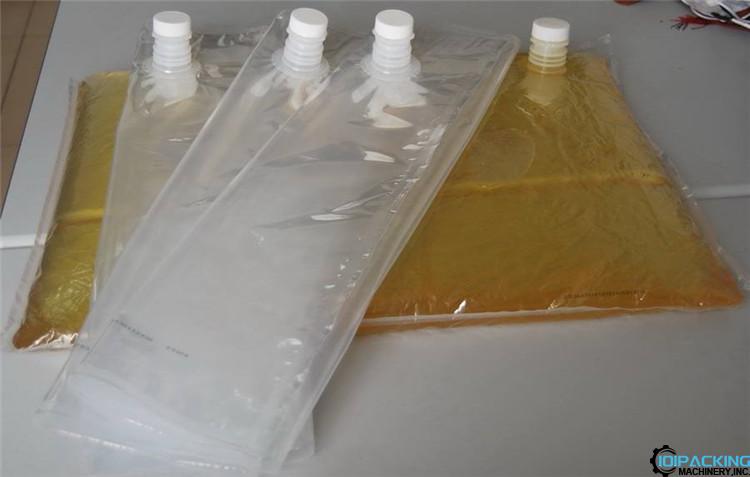

Double heads bag-in-box filling machine is specially designed for bag-in-box filling,adopting flow meter measuring with high filling precision. And easy to adjust filliing volumes. It is widely used in the filling of wine/eidble oil/juice/syrup/ketchup/mayonaise etc.

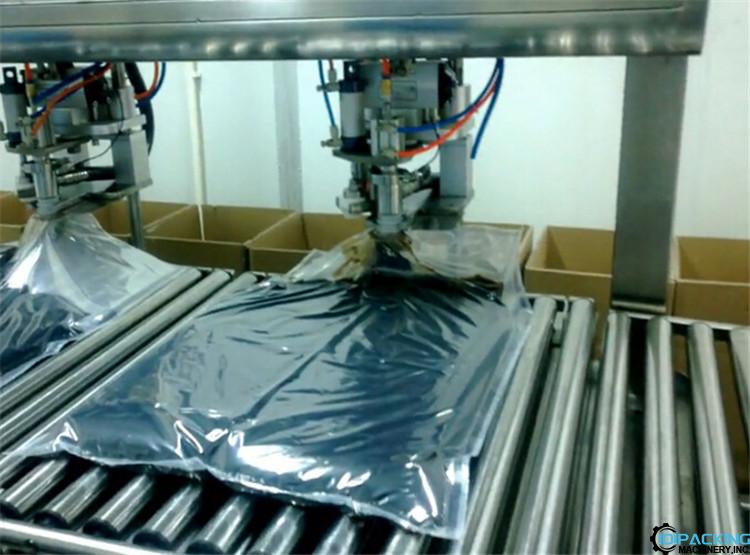

The bag-in-box filling machine is a contrivance our company has specifically designed for handling quantitative bag-in-box filling operations by drawing on advanced French technology. It employs a flow meter to control the quantity of material released in each discharge, and features high filling precision, intuitive and easy moves to set up and adjust the filling quantity. The machine enjoys a novel design as well as a reasonable, compact construction; can complete some process steps automatically, including uncapping, quantitative filling, vacuum pumping, capping, and others; and can be widely used in bag-in-box filling applications for such liquid materials as wine, edible oil, fruit juice, additives, milk, syrup, alcoholic beverages and concentrated seasonings.
