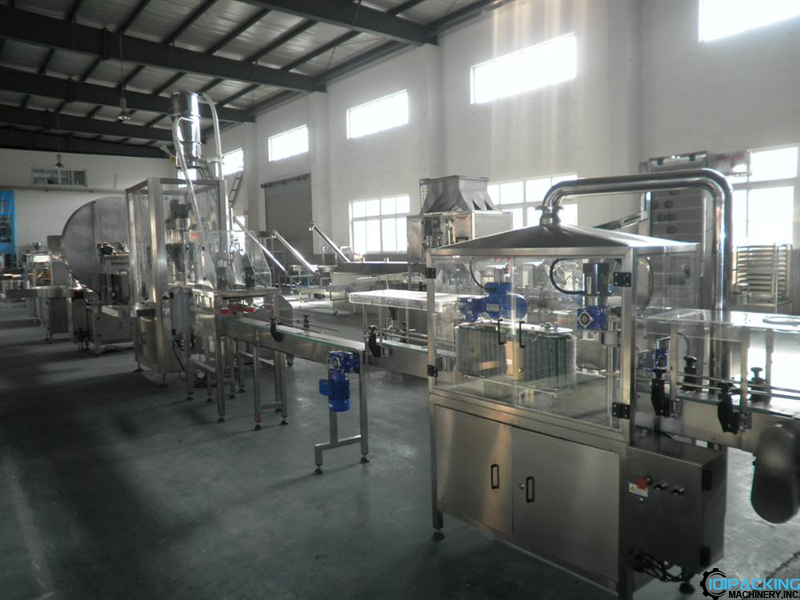

Automatic metal can tin bottle powder packing line

Size of the container: Cylindrical containerφ50—180MM High 50-350MM
Packing weight: 10— 5000G (The screw attachment is to be changed)
Weighing range: 1—6000G (Resolution is 01g)
Filling Accuracy:
≤ 500g,with an error≤±1.5g
500~1000g,with an error≤±2.5%g
>1000g,with an error≤±4g
Filling Rate: 25—55cans/min
Power supply:3P/380V(1P/220V according your requirement) 50—60Hz
Total power: 3KW.
Air pressure: 6-8kg/cm2
Use tolerance: 0.2m3/min
Total weight: 700KG
Overall Dimensions: 3330×1200×2930MM
Hopper volume: 50L(main), 35L(assit)

Automatic metal can tin bottle powder packing line

Size of the container: Cylindrical containerφ50—180MM  High 50-350MM

Packing weight: 10— 5000G (The screw attachment is to be changed)

Weighing range: 1—6000G (Resolution is 01g)

Filling Accuracy:

≤ 500g,with an error≤±1.5g

500~1000g,with an error≤±2.5%g

>1000g,with an error≤±4g

Filling Rate: 25—55cans/min

Power supply:3P/380V(1P/220V according your requirement) 50—60Hz

Total power: 3KW.

Air pressure:   6-8kg/cm2

Use tolerance: 0.2m3/min

Total weight: 700KG

Overall Dimensions: 3330×1200×2930MM

Hopper volume: 50L(main), 35L(assit)
