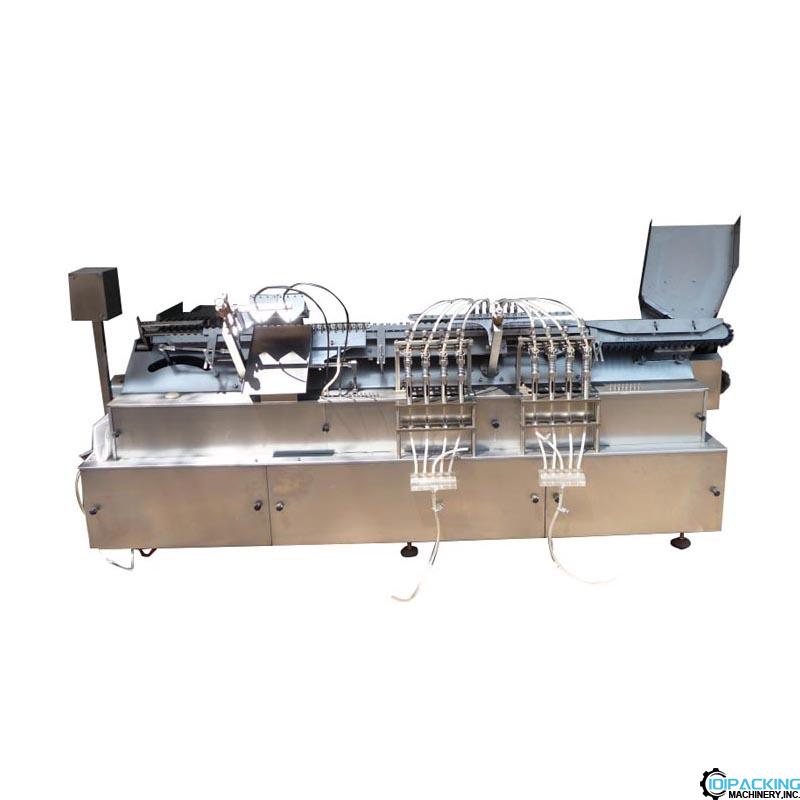

Automatic medical glass vials filling heat melt sealing machine
Technical Parameters |
Model | AGL2 | AGL4 | AGL4-B | AGL6 | AGL6-B | AGL8 |
Filling Needles | 2 | 4 | 4 | 6 | 6 | 8 |
Specification (ml) | (1-2) OR (5-10) | (1-2) OR (5-10) | 5-20 | (1-2) OR (5-10) | 5-20 | (1-2) OR (5-10) |
Output (Pieces/min) | 45-60 | 90-130 | 60-100 | 135-200 | 90-150 | 180-260 |
Power (Kw) | 0.37 | 0.55 |
Energy consumption Gas(m³/h) | 2-2.5 | 2-2.5 | 3-3.5 | 4-4.5 |
Energy consumption LPG (kg/h) | 1 | 1 | 1.5 | 2 |
Consumption of oxygen (Kg/h) | 7 | 7 | 10 | 12 |
External dimensions (mm) | 1100*720*150 | 1540*980*1500 | 1980*1000*1500 | 2400*1000*150 |
Weight (Kg) | 250 | 330 | 350 | 470 | 500 | 680 |
Power supply | 220V50Hz |
