Model:PK-180D-2L
Measuring range:1-150ml
Measuring device:Auger doser/pump/multi-head weigher/volumetric cup
Pouch size:60mm*75mm(min) 90mm*225mm(max)
Packaging capacity:140ppm max
Power:5.5kw
Air consumptin:300NL/min
Machine dimension:4500*970*1535mm
Weight:1600kg

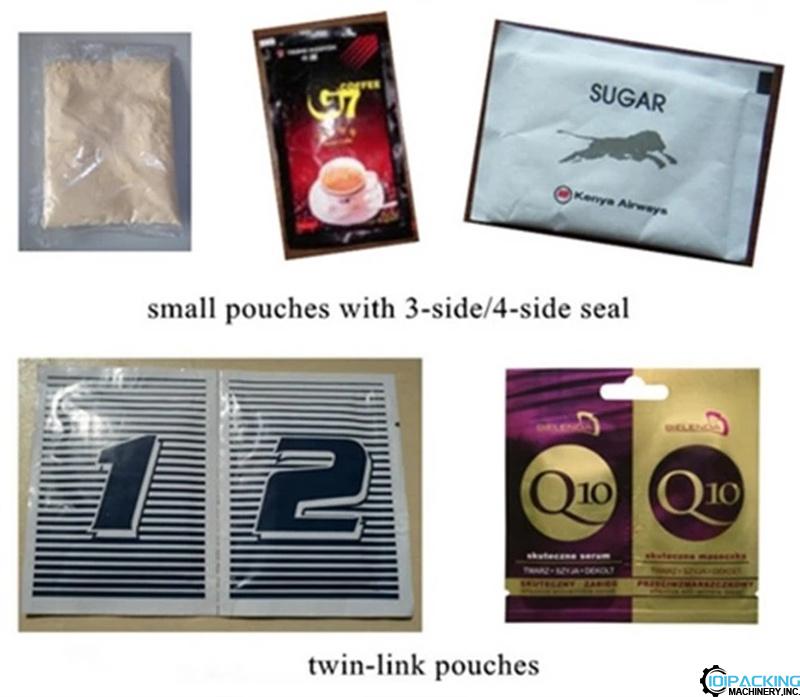

Function:3-side seal, 4-side seal, twin-link
Automatic horizontal type twin bag powder form fill seal packing machine
Model:PK-180D-2L
Measuring range:1-150ml
Measuring device:Auger doser/pump/multi-head weigher/volumetric cup
Pouch size:60mm*75mm(min) 90mm*225mm(max)
Packaging capacity:140ppm max
Power:5.5kw
Air consumptin:300NL/min
Machine dimension:4500*970*1535mm
Weight:1600kg
Function:3-side seal, 4-side seal, twin-link
This process can fill two bags one time, by different filler, can make the same packs to make the speed faster, also can pack the twins bags with different materials.
1. Film unwinding 2. Pouch Forming3. Film Guide 4. Photocell 5. Bottom Seal6. Vertical Seal I 7. Vertical Seal II 8. Perforation knife 9. Tear Notch 10. Cutting 11. Pouch Pulling 12. Pouch Opening 13. Filling 1 14. Filling 2 15. Top Seal 16. Finished Product 17. Outlet
