Automatic aluminum PVC pod capsule blister packing machine

Model:PK-DPP-80
Punching frequency:10-33times/min
Production capacity:2400plates/hour
Max. Forming area & Depth:105x70(standard depth <=15mm),
Max. Depth 25mm(customized)
Standard operation range:30-80mm(can be customized)
Standard section:80x70mm (can be customized)
Air pressure:0.4-0.6Mpa
Air consumption:(Air compressor)≥0.3m3/min
Total power:380V/220V 50Hz? 2.8Kw
Main electrode power:0.75Kw
PVC hard film:0.15-0.5*110 (mm)
PTP (Alu foil):0.02-0.035*110 (mm)
Dialysis Paper:50-100g*110(mm)
Mould cooling:Tap water or Recycling water
Overall dimension:1840x590x1100 (mm) (LxWxH)
Net weight:450kg
Gross weight:520kg
Noise index:<75dBA

Automatic aluminum PVC pod capsule blister packing machine

Model:PK-DPP-80

Punching frequency:10-33times/min

Production capacity:2400plates/hour

Max. Forming area & Depth:105x70(standard depth <=15mm),

Max. Depth 25mm(customized)

Standard operation range:30-80mm(can be customized)

Standard section:80x70mm (can be customized)

Air pressure:0.4-0.6Mpa

Air consumption:(Air compressor)≥0.3m3/min

Total power:380V/220V 50Hz? 2.8Kw

Main electrode power:0.75Kw

PVC hard film:0.15-0.5*110 (mm)

PTP (Alu foil):0.02-0.035*110 (mm)

Dialysis Paper:50-100g*110(mm)

Mould cooling:Tap water or Recycling water

Overall dimension:1840x590x1100 (mm) (LxWxH)

Net weight:450kg

Gross weight:520kg

Noise index:<75dBA

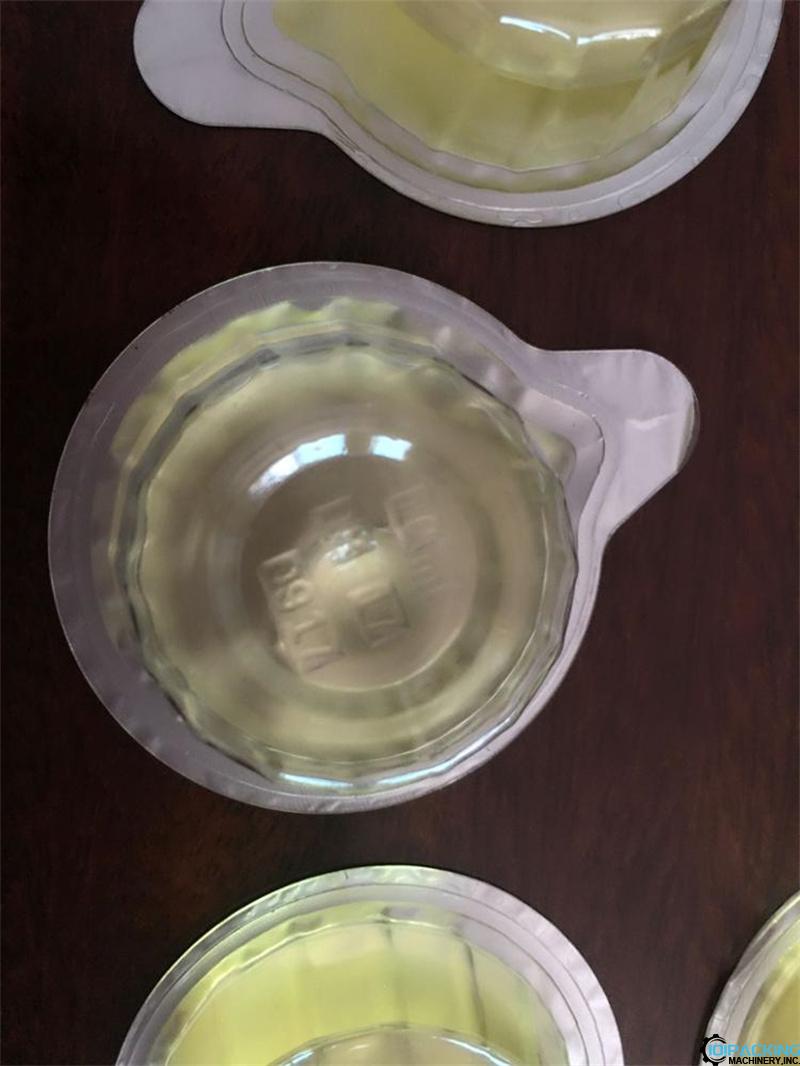

It is suitable for packaging chocolates, butter, biscuits, perfume, essence, facemasks etc with AL/PL, PL/PL materials.
