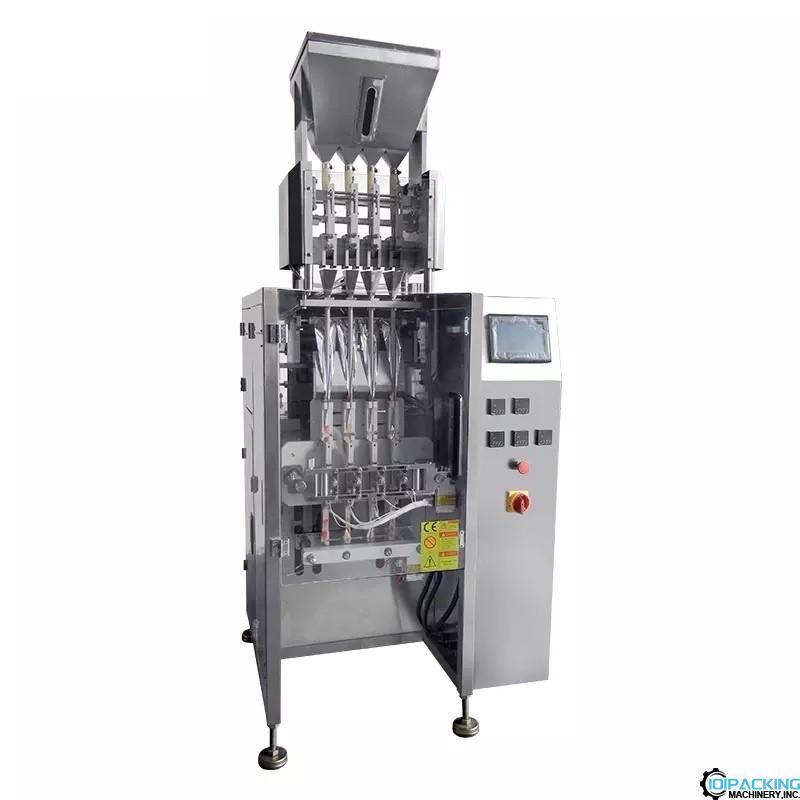

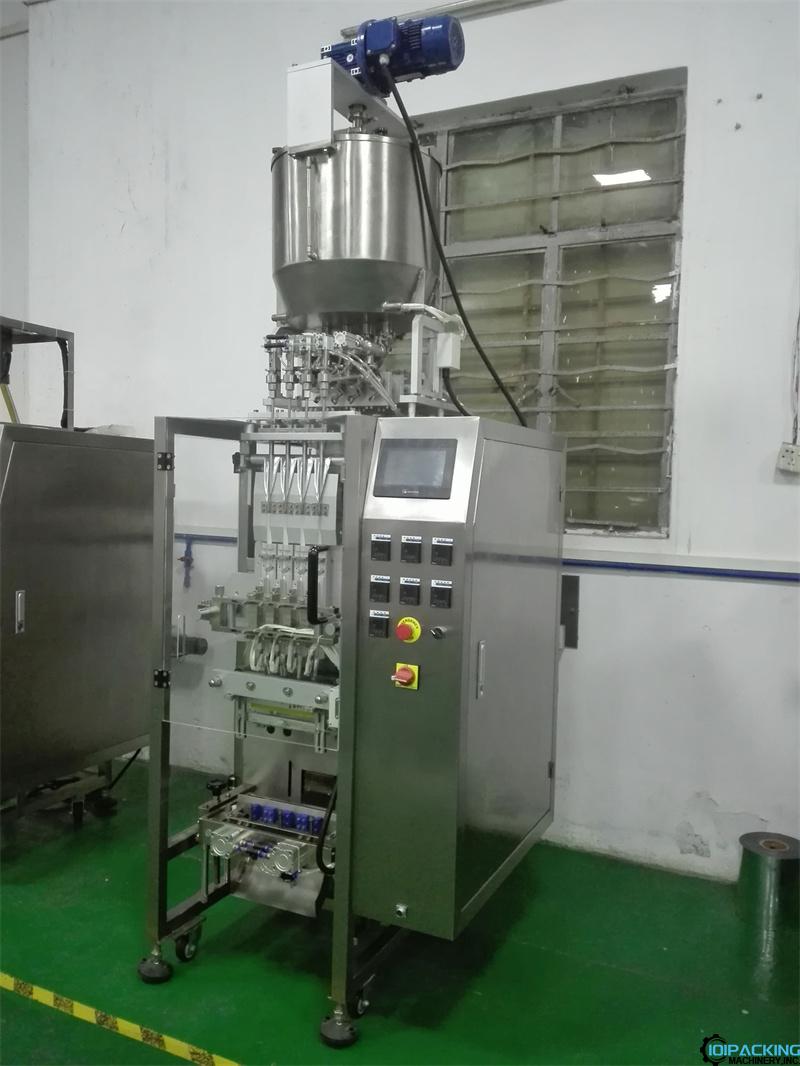

Automatic 4 lanes liquid oil sachet bag packaging machine

Machine model:PK-480-4L
Filling lane number:4
Packing speed:80-140 bag/min
Making bag size:L: 50-250mm, W: 35-60mm
Maximum film:480mm
Film thickness:0.05-0.1mm
Seal type:4 sides seal
Powder supply:3.5KW/1N+PE/50HZ/AC220V
Air consumption:0.8Mpa 0.8m3/min
Machine dimension:L1470*W950*H2005mm
Net weight:300kg

Automatic 4 lanes liquid oil sachet bag packaging machine

Machine model:PK-480-4L

Filling lane number:4

Packing speed:80-140 bag/min

Making bag size:L: 50-250mm, W: 35-60mm

Maximum film:480mm

Film thickness:0.05-0.1mm

Seal type:4 sides seal

Powder supply:3.5KW/1N+PE/50HZ/AC220V

Air consumption:0.8Mpa 0.8m3/min

Machine dimension:L1470*W950*H2005mm

Net weight:300kg

Working steps:liquid heating and mixing(optional)→piston pump measuring→filling liquid→counting→bag making→date coding(optional)→conveying finished bags.
