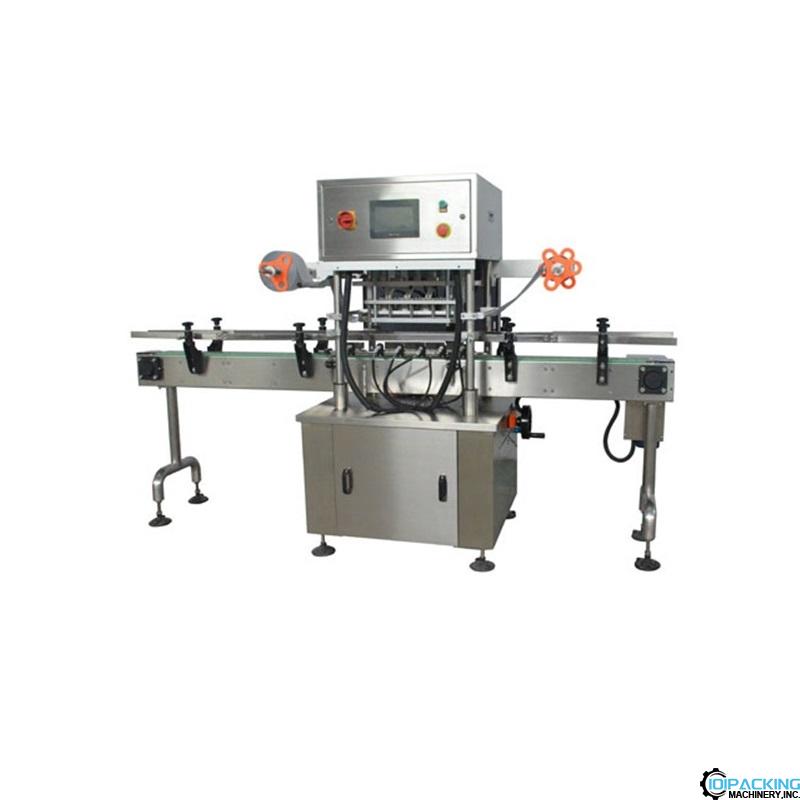

Automatic 4 heads bottle foil foil heat cut sealing machine

Model:PK-BS04H
Bottle size: ф80-120mm (Special diameters need to be customized)
Sealing speed: 1200-1500 bottle/hour
Sealing temperature: 50-250℃
Constant temperature form and deviation: automatic constant temperature, deviation ±5℃
Power supply voltage AC220V/50-60Hz
Whole machine power: less than 2.8KW
Air source: 0.6Mpa, 0.4m3/min
Dimensions: 2500 (L) × 1000 (W) × 1500 (H)
Machine weight:300KG

Automatic 4 heads bottle foil foil heat cut sealing machine

Model:PK-BS04H

Bottle size: ф80-120mm (Special diameters need to be customized)

Sealing speed: 1200-1500 bottle/hour

Sealing temperature: 50-250℃

Constant temperature form and deviation: automatic constant temperature, deviation ±5℃

Power supply voltage AC220V/50-60Hz

Whole machine power: less than 2.8KW

Air source: 0.6Mpa, 0.4m3/min

Dimensions: 2500 (L) × 1000 (W) × 1500 (H)

Machine weight:300KG

Description of film material and sealing temperature:

1. PP (polyethylene): 170℃

2. PE (polypropylene): 170℃-200℃.

3. PS (polystyrene): 180°C

4. Easy to tear film: 120℃-180℃

5. PET (Polyester): 160℃-200℃

Film feeding from left to right:

Film feeding from front to back:
